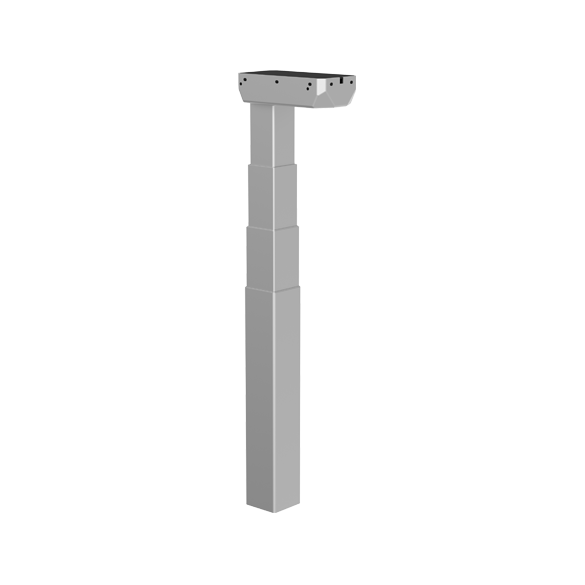

4 stage 300N Square lifting column

4 stage lifting column NKLC39
1. NKLC39 is a lifting column mit 4 stages, which is suitable for office, home and business environment.
2. Compared with standard lifting column, it occupies lower installation length, higher stoke, faster speed.
3. The anti-collision function of it minimizes the risk when the desk hits an obstacle.
4. It is suitable for products with low load and high installation length requirements, such as desk converter and lifting tea table.

EMAIL


4 stage 300N Square lifting column NKLC39

Introduction

  • NKLC39 is a lifting column mit 4 stages, which is suitable for office, home and business environment.

  • Compared with standard lifting column, it occupies lower installation length, higher stoke, faster speed.

  • The anti-collision function of it minimizes the risk when the desk hits an obstacle.

  • It is suitable for products with low load and high installation length requirements, such as desk converter

    and lifting tea table.

Features

1. With 3mm optimized motor housing design for extra strength and stability

2. The tube is no hole design

3. Max. load capacity is 300N per column.

4. Fit with series control boxes to realize stable speed 50mm/s

5. Low noise level ≤50dB

6. Standard installation length: 450mm

7. Standard stroke length: 700mm

8. Column dimensions: outer tube: 70x70mm; middle tube:60x60mm; inner tube:55x55mm

9 Motor housing dimension: 190x96x48mm

10 Motor: design high power motor

11 Hall sensor enabling parallel drive



ZHEJIANG NAKIN INTELLIGENT TECHNOLOGY CO.,LTD started since 1988 , specializing in R&D, production of linear motion system. NAKIN has linear actuator, lifting column, height adjustable lifting desk frame and control box, which now have wide applications in fields like medical care (medical bed , dental chair , patient lift ), home care (massage sofa , reclining chair , window , door  ), intelligent industries (solar tracker , robot , snowplow , lift platform , lindustry machines ) , agricultural machinery and smart office (sit-stand office tables ). We have a strong R & D team and the most competitive manufacturing capacity, mechanical and electrical integration capacity and 30 years of export experience . we have complete production equipments including automatic cutter line, laser robots and spraying lines .

NAKIN has passed system certification of ISO9001 ,and our products has been approved by UL, CE . Our products are sold to North America , Europe, Australia, Southeast Asia, and many other countries in the world . NAKIN aims to provide high quality products and good service for customers .



production line .png




Small orders send by FEDEX /UPS/TNT/DHL express , it takes about 7 days to arrive .

Big orders send by sea ,  it takes about 30 days to arrive .

linear actuator packages.png


Q: May I have a sample order before bulk one?
A: Of course, we suggest customers to buy samples to test first .

Q: How can I get the quotation?
A: You need to send up information, we will let our sales to contact you, and the details you should to give:  email address,
telephone number, input voltage , Load force , stroke length , retracted length , speed , your application and  quantity .

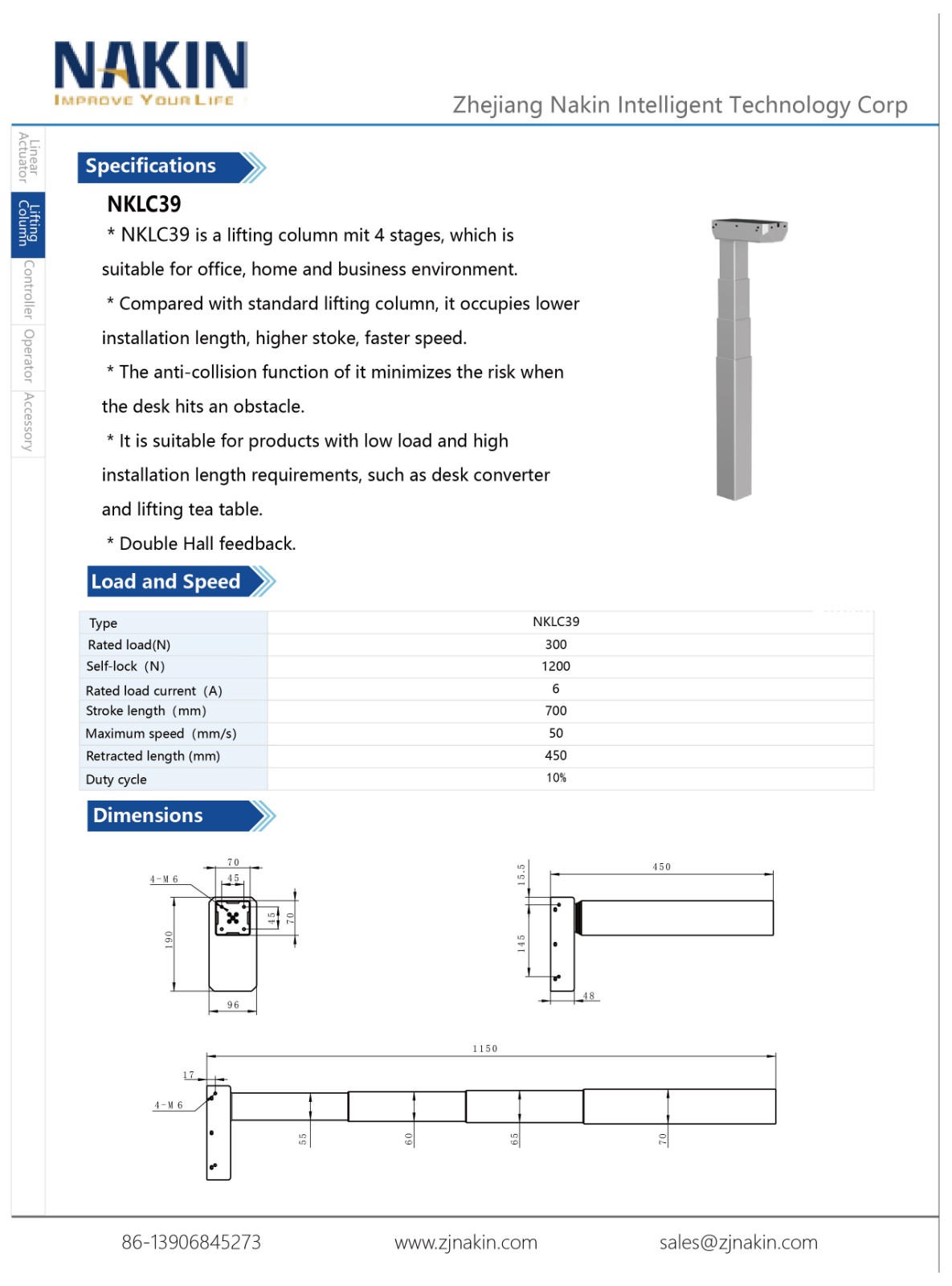

Download NKLC39 Datasheet
