lifting column for height adjustable table

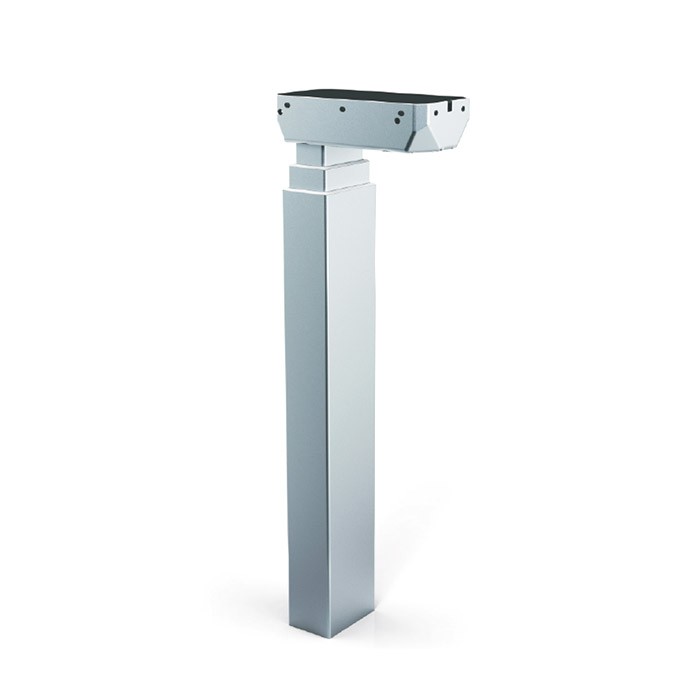

NKLC10-3-S lifting column for height adjustable table

Introduction

Lifting columns are manufactured with light-weight aluminum or durable steel, our lifting columns offer superb stability, low-noise, and low-energy height adjustment. These adjustable table legs are resistant to dust and moisture while requiring no long-term maintenance as opposed to hydraulic and pneumatic alternatives.

Features

1. With 3mm optimized motor housing design for extra strength and stability

2. The tube is no hole design

3. Max. load capacity is 800N per column.

4. Fit with series control boxes to realize stable speed 35mm/s

5. Low noise level ≤50dB

6. Standard installation length: 560mm

7. Standard stroke length: 650mm

8. Column dimensions: outer tube: 90x60mm; middle tube:85x55mm; inner tube:80x50mm

9 Motor housing dimension: 190x96x48mm

10 Motor: design high power motor

11 Hall sensor enabling parallel drive

ZHEJIANG NAKIN INTELLIGENT TECHNOLOGY CO.,LTD started since 1988 , specializing in R&D, production of linear motion system. NAKIN has linear actuator, lifting column, height adjustable lifting desk frame and control box, which now have wide applications in fields like medical care (medical bed , dental chair , patient lift ), home care (massage sofa , reclining chair , window , door  ), intelligent industries (solar tracker , robot , snowplow , lift platform , lindustry machines ) , agricultural machinery and smart office (sit-stand office tables ). We have a strong R & D team and the most competitive manufacturing capacity, mechanical and electrical integration capacity and 30 years of export experience . we have complete production equipments including automatic cutter line, laser robots and spraying lines .

NAKIN has passed system certification of ISO9001 ,and our products has been approved by UL, CE . Our products are sold to North America , Europe, Australia, Southeast Asia, and many other countries in the world . NAKIN aims to provide high quality products and good service for customers .

Small orders send by FEDEX /UPS/TNT/DHL express , it takes about 7 days to arrive .

Big orders send by sea ,  it takes about 30 days to arrive .

Q: May I have a sample order before bulk one?
A: Of course, we suggest customers to buy samples to test first .

Q: How can I get the quotation?
A: You need to send up information, we will let our sales to contact you, and the details you should to give:  email address,
telephone number, input voltage , Load force , stroke length , retracted length , speed , your application and  quantity .

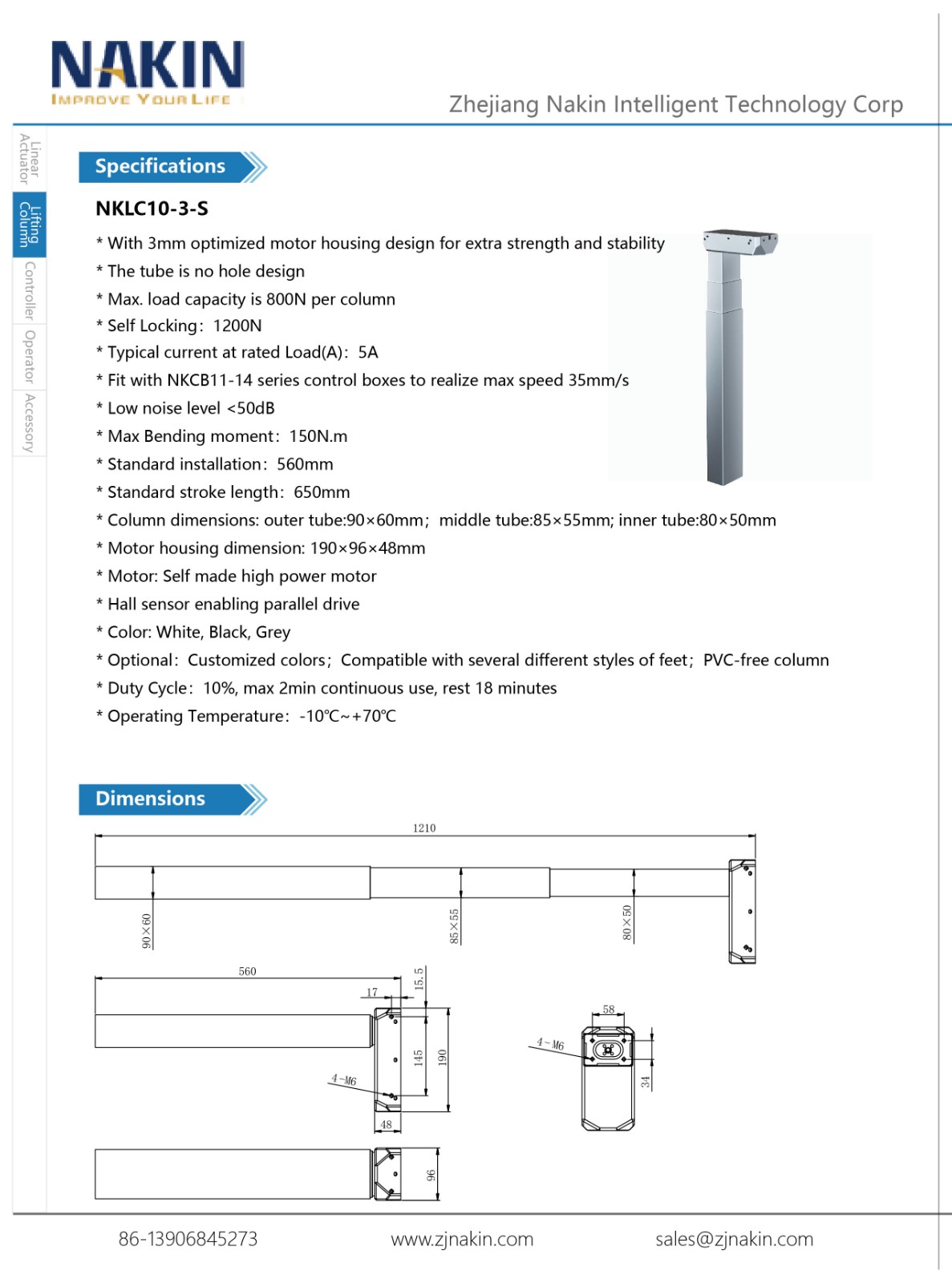

Download NKLC10-3-S Datasheet
