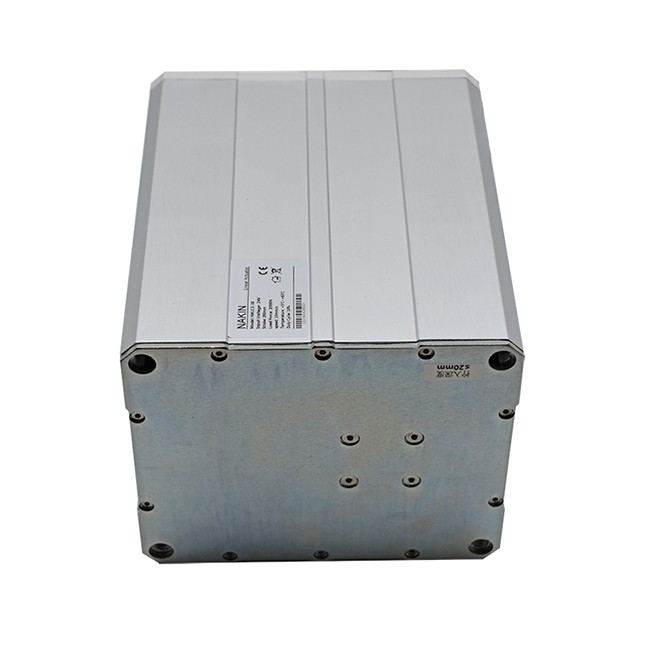

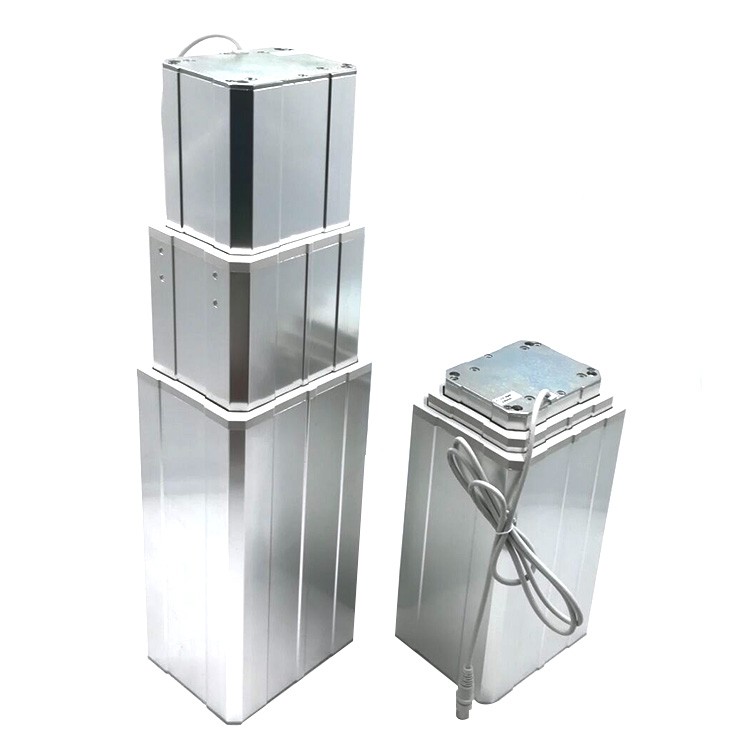

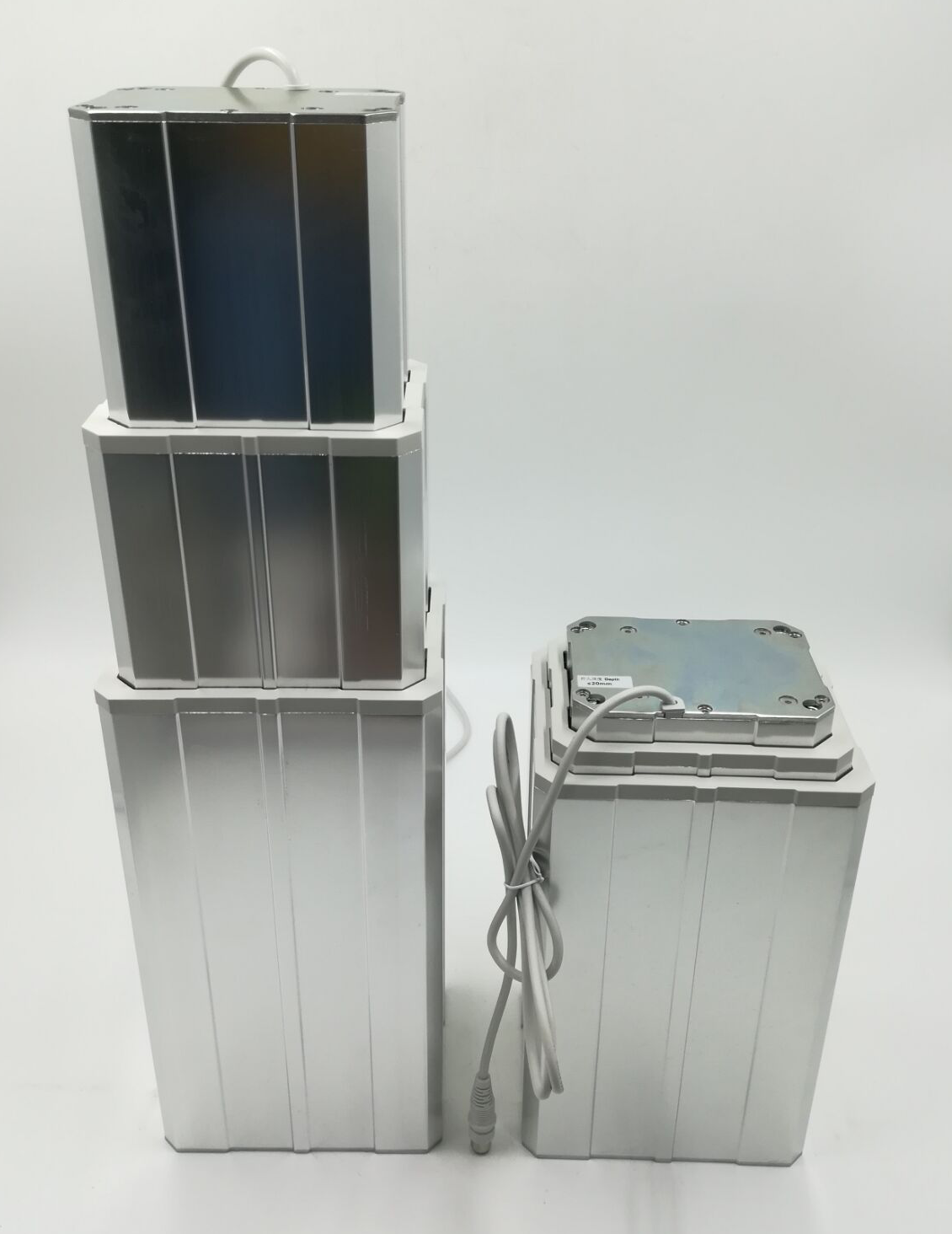

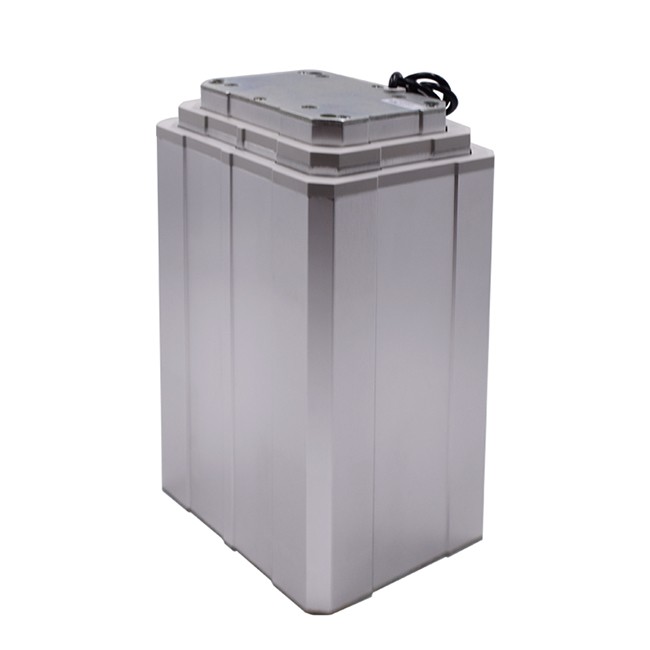

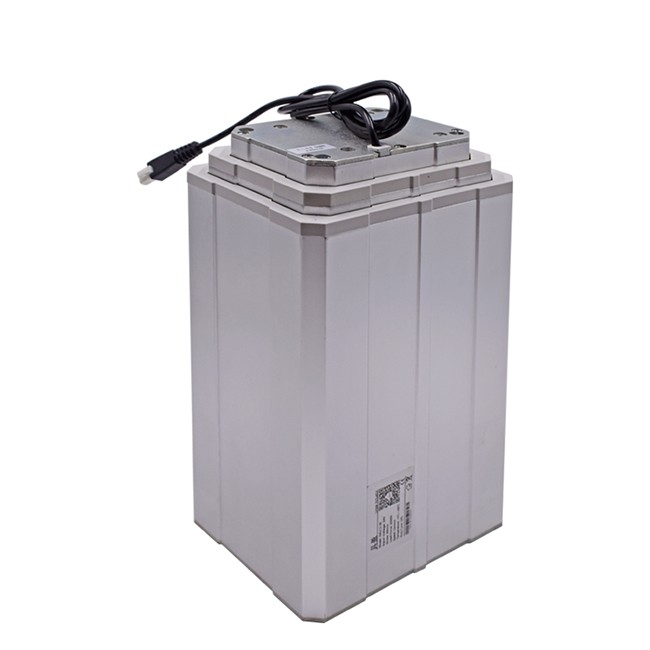

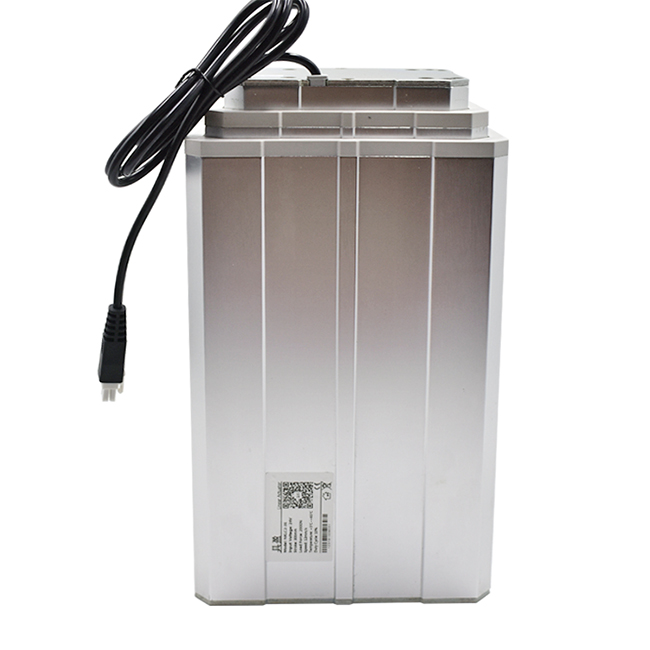

6000N 3 layer telescopic lift column for medical

6000N 3 layer telescopic lift column for medical

Introduction

NKLC26-3A designed for any height-adjustable workstation applications, such as the medical bed for the healthcare industry. NKLC26-3A has 3 segments and have small installation dimension and higher speed . With the Hall sensors built-in, it can be operated either as single column or several columns in synchronized movement by choosing a control box with micro-processor .

Features

1、NKLC26-3A is designed for linear lifting column with one of  24VDC actuator inside；

2、It is designed to provide vertical lift (only push) in where both need bending and torque force；

3、There are two processed plates with four holes to fix ；

4、Anodised aluminium, strong and wearproof；

5、Low noise；

6、Protection class: IP54

ZHEJIANG NAKIN INTELLIGENT TECHNOLOGY CO.,LTD started since 1988 , specializing in R&D, production of linear motion system. NAKIN has linear actuator, lifting column, height adjustable lifting desk frame and control box, which now have wide applications in fields like medical care (medical bed , dental chair , patient lift ), home care (massage sofa , reclining chair , window , door  ), intelligent industries (solar tracker , robot , snowplow , lift platform , lindustry machines ) , agricultural machinery and smart office (sit-stand office tables ). We have a strong R & D team and the most competitive manufacturing capacity, mechanical and electrical integration capacity and 30 years of export experience . we have complete production equipments including automatic cutter line, laser robots and spraying lines .

NAKIN has passed system certification of ISO9001 ,and our products has been approved by UL, CE . Our products are sold to North America , Europe, Australia, Southeast Asia, and many other countries in the world . NAKIN aims to provide high quality products and good service for customers .

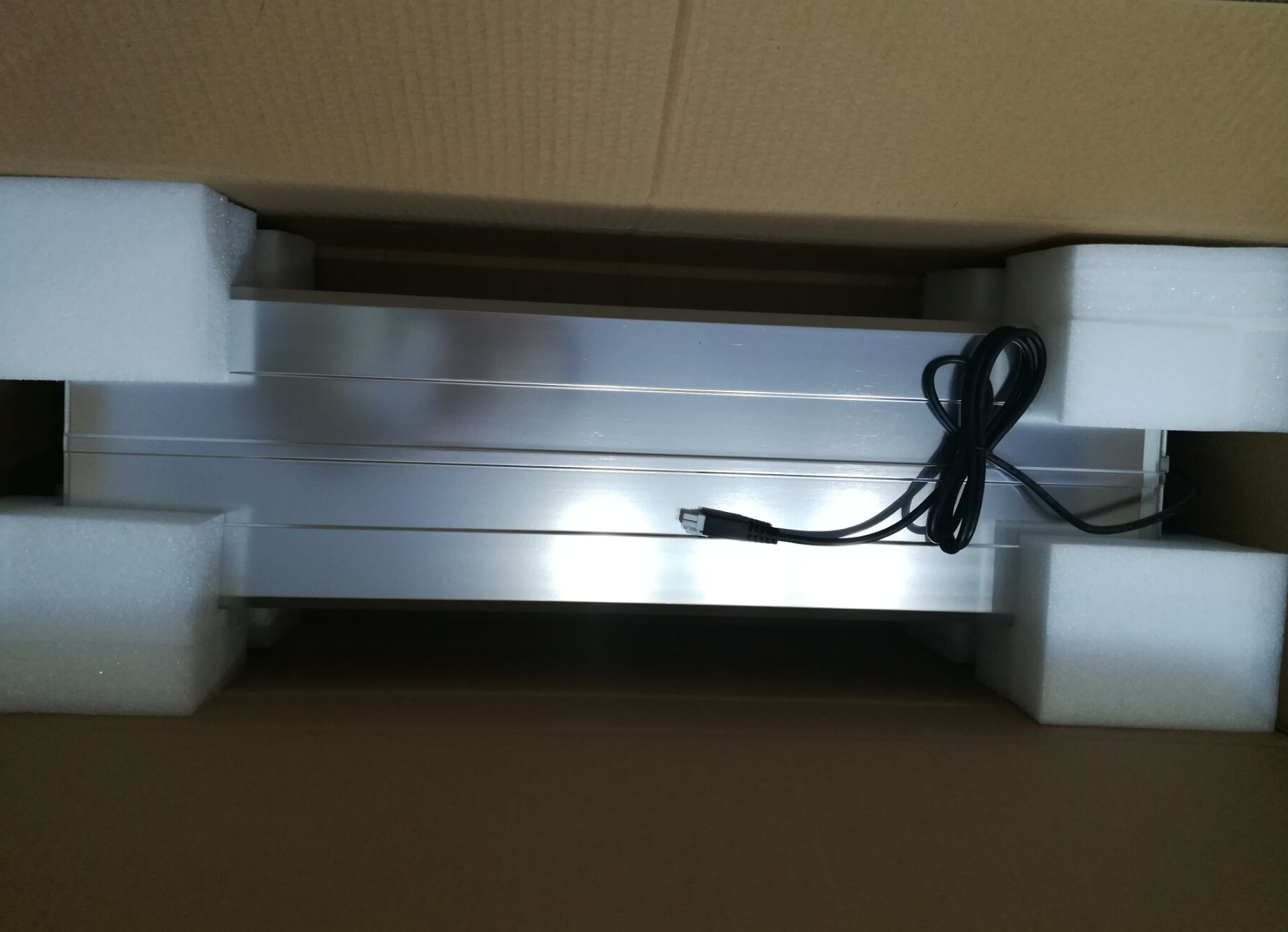

Small orders send by FEDEX /UPS/TNT/DHL express , it takes about 7 days to arrive .

Big orders send by sea ,  it takes about 30 days to arrive .

Q: May I have a sample order before bulk one?
A: Of course, we suggest customers to buy samples to test first .

Q: How can I get the quotation?
A: You need to send up information, we will let our sales to contact you, and the details you should to give:  email address,
telephone number, input voltage , Load force , stroke length , retracted length , speed , your application and  quantity .

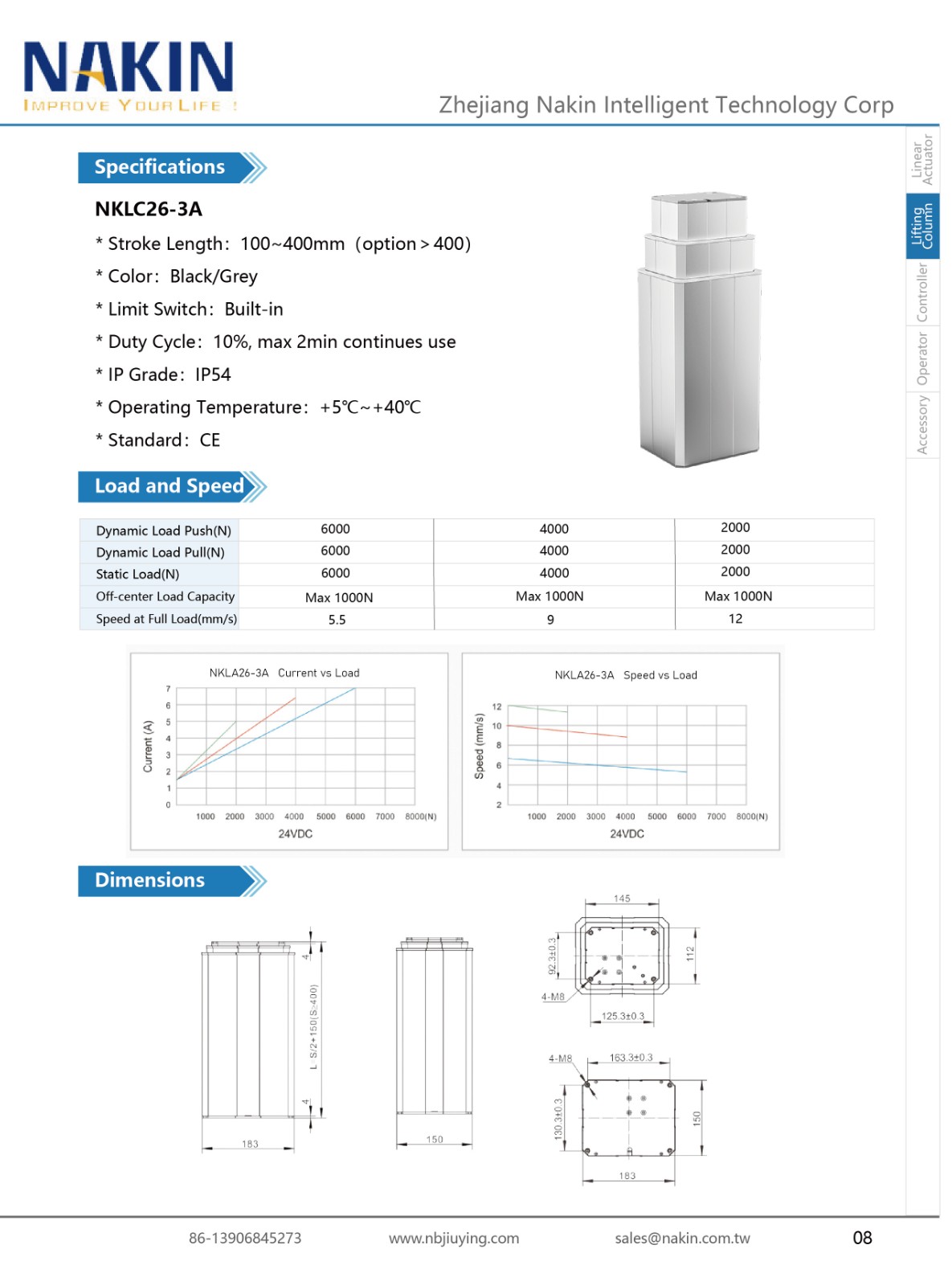

Download NKLC26-3A Datasheet
