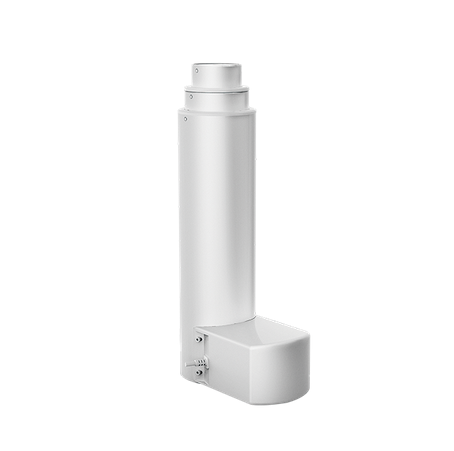

2000N high speed column lift

2000N high speed column lift NKLC1

Introduction

Fashion and comfortable model lifting column desk in nakin adjustable desks. With the height adjustable design, it gives you a more healthier, comfortable and efficient work pattern. Sitting or standing for work is just your choice, let our adjustable height desks bring you a comfortable and appropriate sit or stand work mode

Features

• Max load in push &self-locking（N）：2000

• Max static bending moment（Nm）：400

• Max dynamic bending moment（Nm）：200

• Max speed at full load（mm/s）:10(With 2000N in a push condition)

• Installation dimensions：L=S/2+200

• IP grade: IPX4

• Option: With hall sensor(Apply for synchronize or memory function)

                With aluminium holder for mounting

ZHEJIANG NAKIN INTELLIGENT TECHNOLOGY CO.,LTD started since 1988 , specializing in R&D, production of linear motion system. NAKIN has linear actuator, lifting column, height adjustable lifting desk frame and control box, which now have wide applications in fields like medical care (medical bed , dental chair , patient lift ), home care (massage sofa , reclining chair , window , door  ), intelligent industries (solar tracker , robot , snowplow , lift platform , lindustry machines ) , agricultural machinery and smart office (sit-stand office tables ). We have a strong R & D team and the most competitive manufacturing capacity, mechanical and electrical integration capacity and 30 years of export experience . we have complete production equipments including automatic cutter line, laser robots and spraying lines .

NAKIN has passed system certification of ISO9001 ,and our products has been approved by UL, CE . Our products are sold to North America , Europe, Australia, Southeast Asia, and many other countries in the world . NAKIN aims to provide high quality products and good service for customers .

Small orders send by FEDEX /UPS/TNT/DHL express , it takes about 7 days to arrive .

Big orders send by sea ,  it takes about 30 days to arrive .

Q: May I have a sample order before bulk one?
A: Of course, we suggest customers to buy samples to test first .

Q: How can I get the quotation?
A: You need to send up information, we will let our sales to contact you, and the details you should to give:  email address,
telephone number, input voltage , Load force , stroke length , retracted length , speed , your application and  quantity .

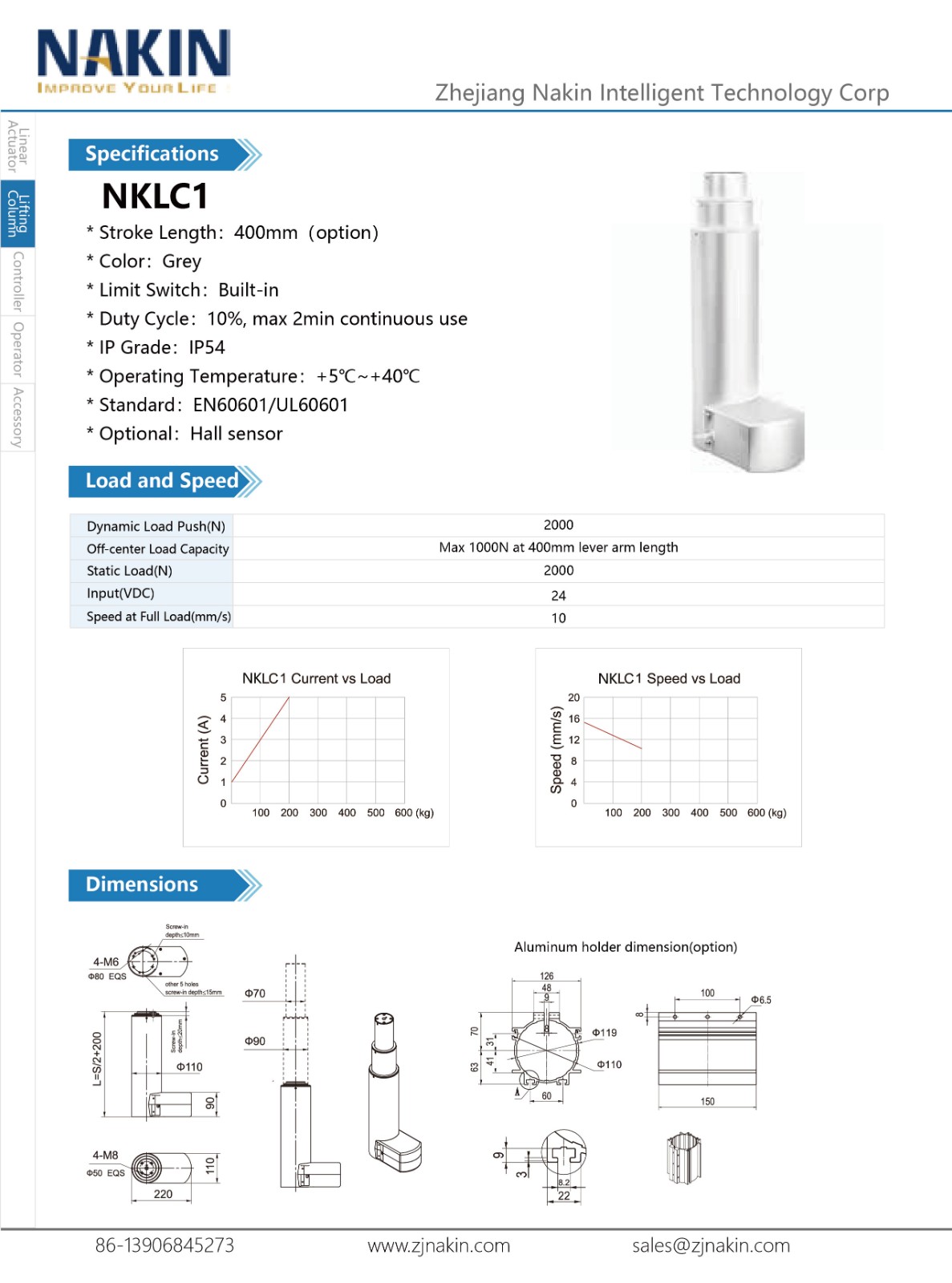

Download NKLC1 Datasheet
