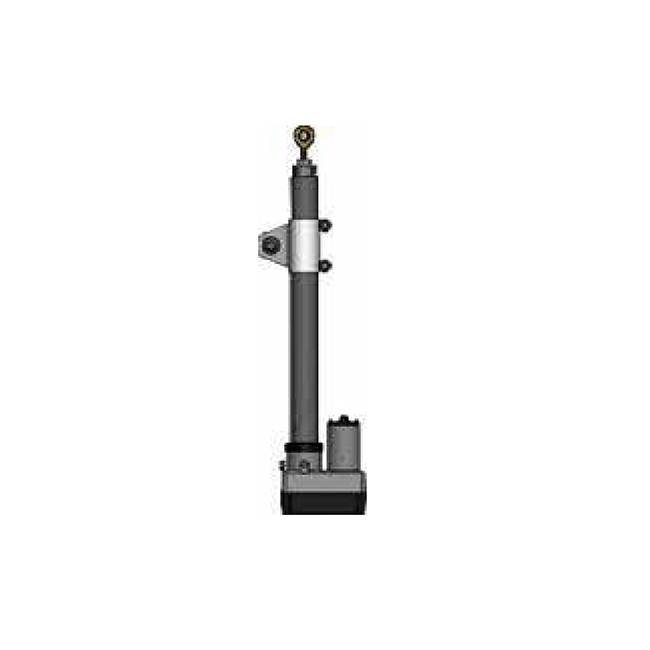

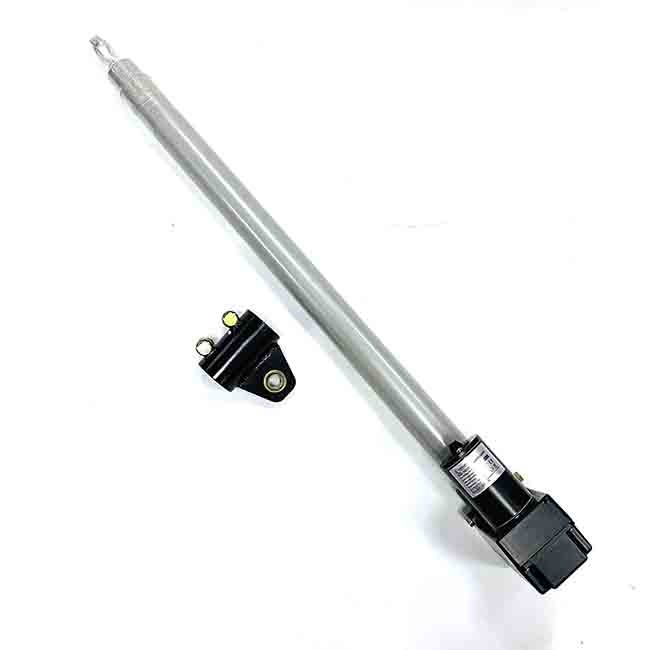

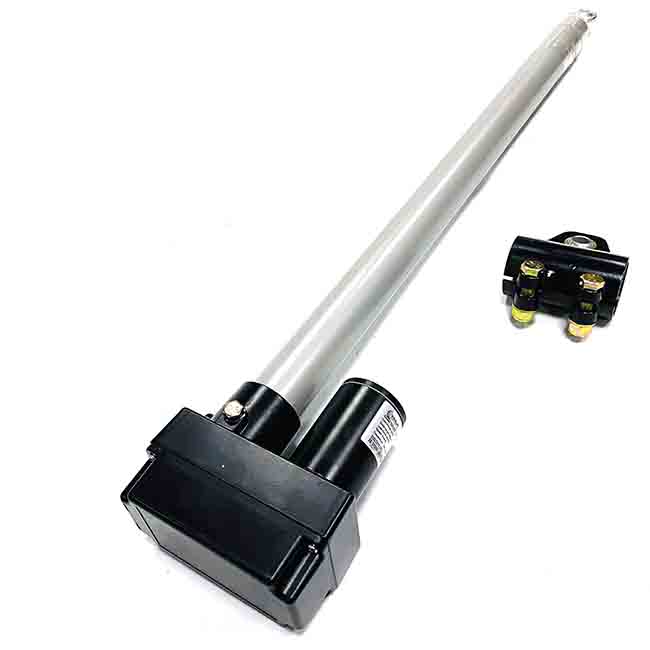

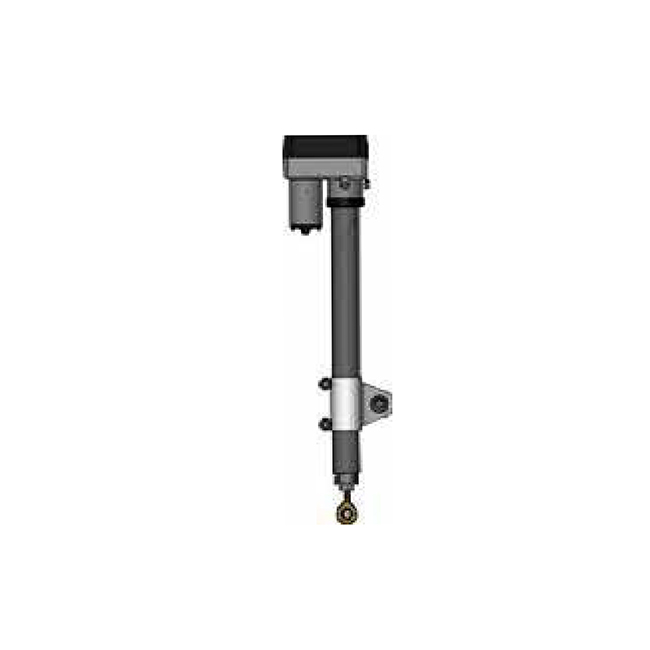

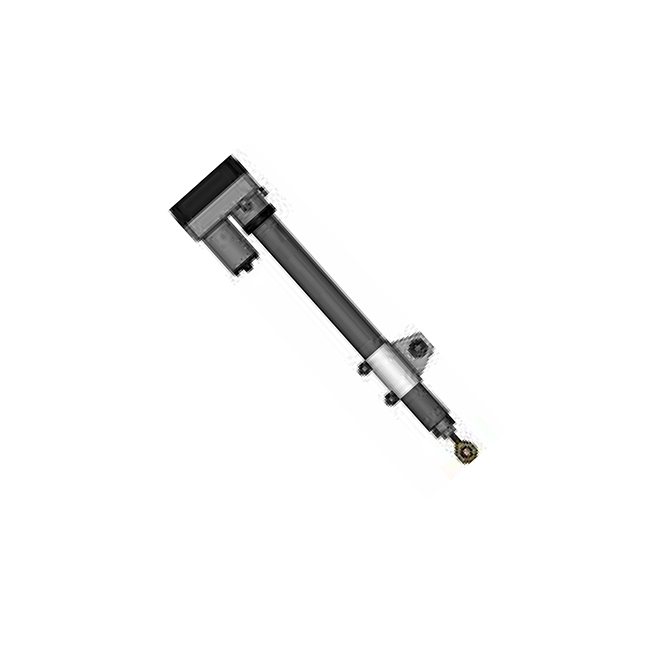

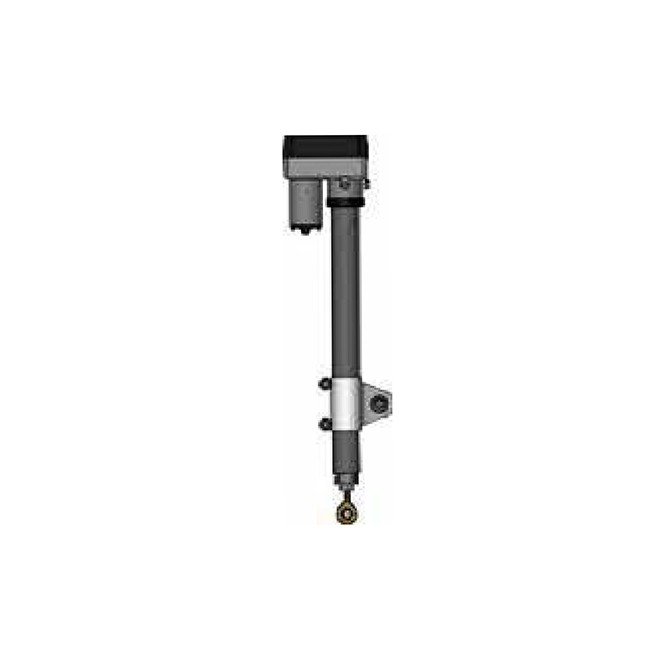

NKLA74 electric 15000N linear actuator for solar tracking

Introduction

NKLA74 electric 15000N linear actuator for solar tracking with ball screw type actuators rated from 250 to 4000 lbs. dynamic and up to 8,000 lbs. static capacity. Available in 12v,24v,36v and 48vdc in both brushed motor and Stepper motor technology. NAKIN solar tracking actuators in specified force, stroke, length, and speed. The efficient solar linear actuators can be seamlessly integrated with your solar panel tracking systems ,resulting in creating a smooth, precisely-controllable motion.

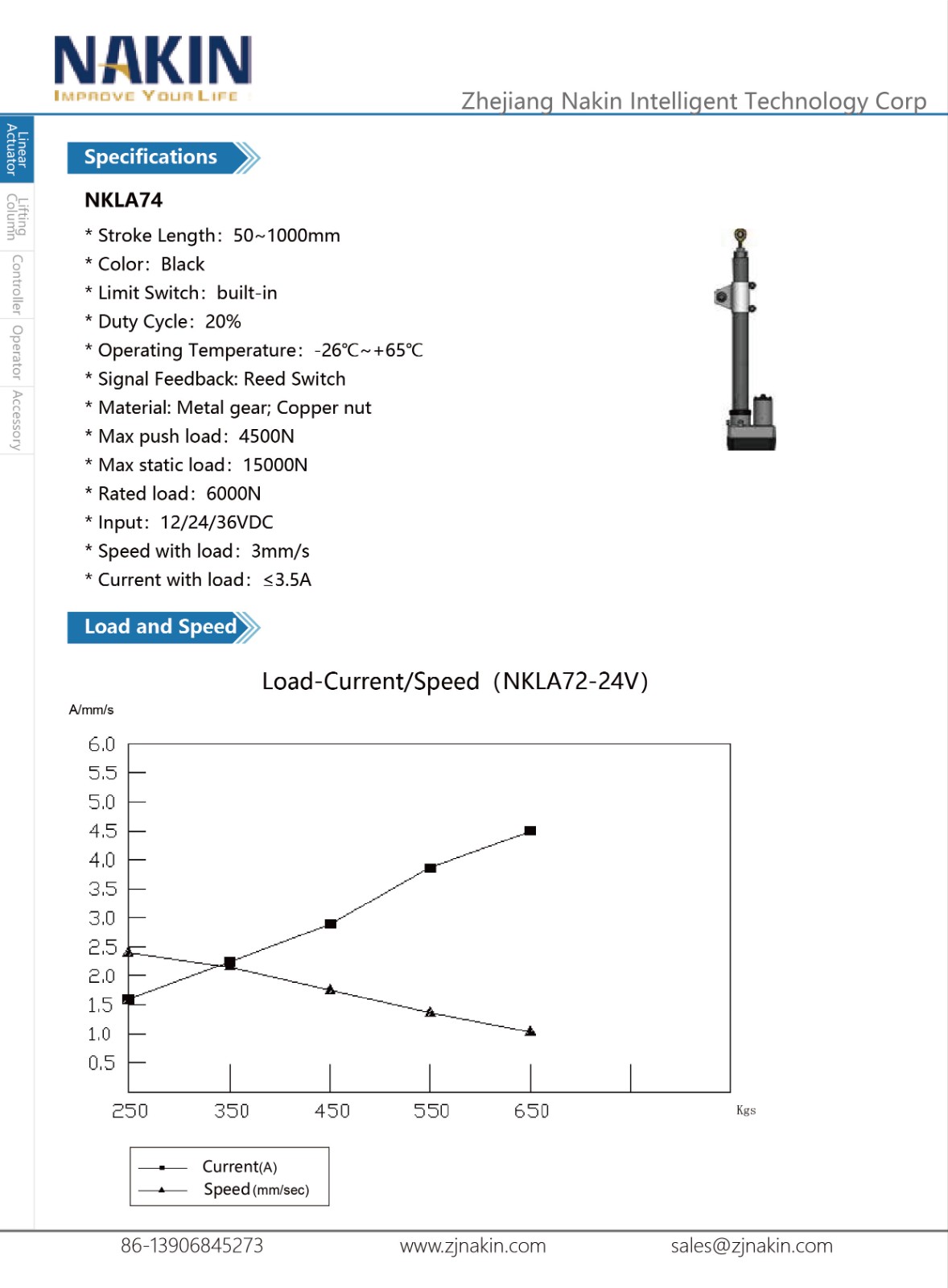

Features

1.Stroke Length : 50~ 1000mm

2.Limit Switch : built-in

3.Duty Cycle : 20%

4.Signal Feedback: Reed Switch

5.Material: Metal gear; Copper nut

6.Max push load : 4500N

7.Max static load : 15000N

ZHEJIANG NAKIN INTELLIGENT TECHNOLOGY CO.,LTD started since 1988 , specializing in R&D, production of linear motion system. NAKIN has linear actuator, lifting column, height adjustable lifting desk frame and control box, which now have wide applications in fields like medical care (medical bed , dental chair , patient lift ), home care (massage sofa , reclining chair , window , door  ), intelligent industries (solar tracker , robot , snowplow , lift platform , lindustry machines ) , agricultural machinery and smart office (sit-stand office tables ). We have a strong R & D team and the most competitive manufacturing capacity, mechanical and electrical integration capacity and 30 years of export experience . we have complete production equipments including automatic cutter line, laser robots and spraying lines .

NAKIN has passed system certification of ISO9001 ,and our products has been approved by UL, CE . Our products are sold to North America , Europe, Australia, Southeast Asia, and many other countries in the world . NAKIN aims to provide high quality products and good service for customers .

Small orders send by FEDEX /UPS/TNT/DHL express , it takes about 7 days to arrive .

Big orders send by sea ,  it takes about 30 days to arrive .

Q: May I have a sample order before bulk one?
A: Of course, we suggest customers to buy samples to test first .

Q: How can I get the quotation?
A: You need to send up information, we will let our sales to contact you, and the details you should to give:  email address,
telephone number, input voltage , Load force , stroke length , retracted length , speed , your application and  quantity .

Download NKLA74 Datasheet
