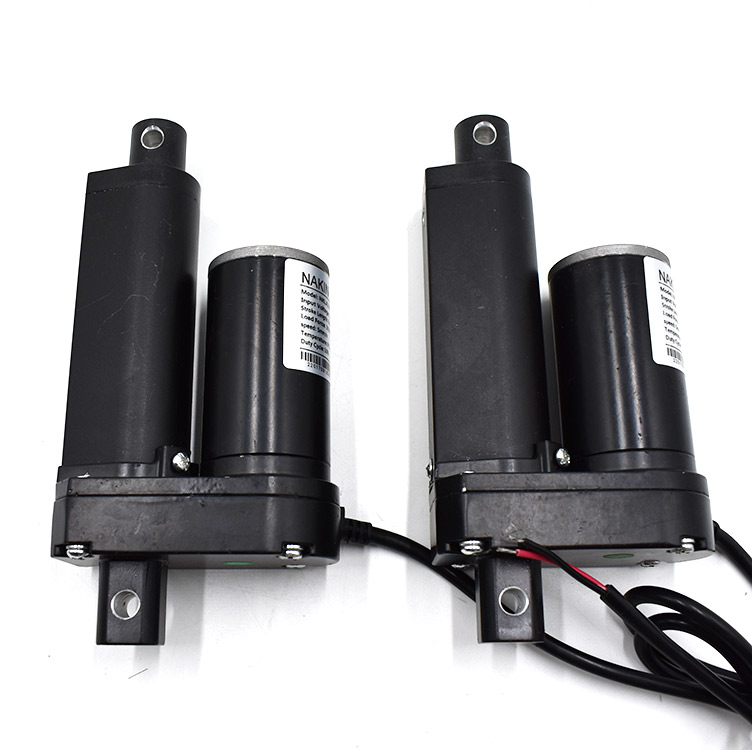

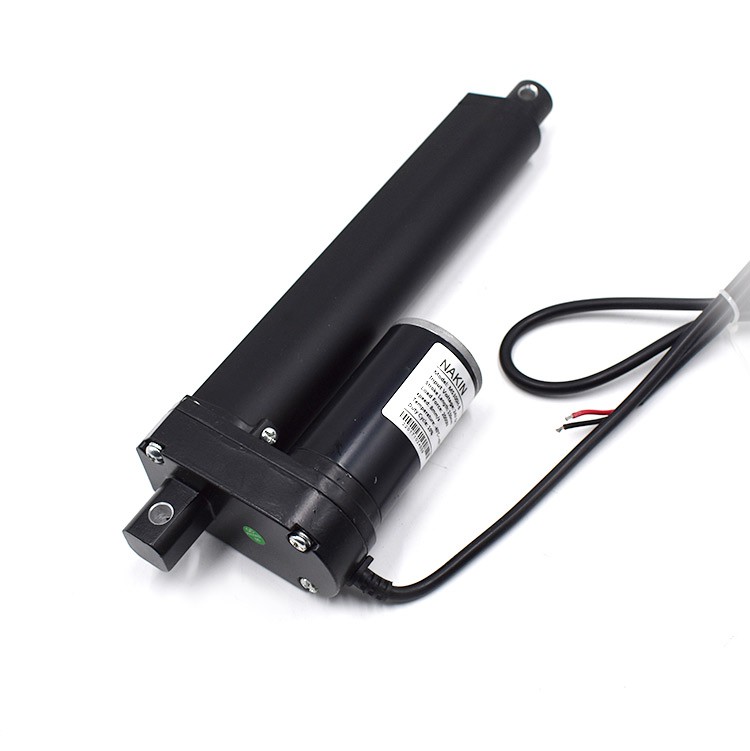

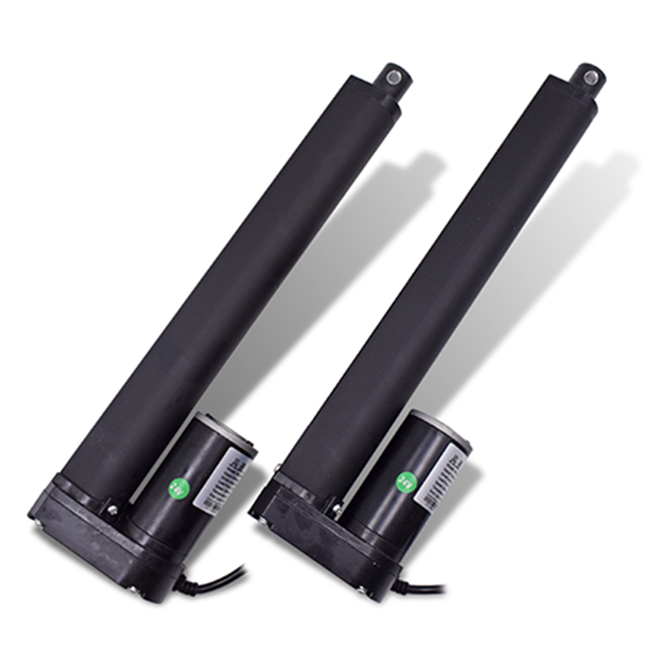

3500N mini industrial linear actuator

NKLA22B 3500N mini industrial linear actuator

Introduction

This type of compact-design and lightweight product is made of aluminum. It could stop itself after stroke(customized size) ends under the control of internal micro switch and dc motor gear -ratio box .It is easy and convenient to install and operate .for this characters. It replaces traditional hydraulic and air pressure in many aspects like lifting back of seat of airplane, ship and vehicle, medical and fire equipment, etc

Features

•     Operating temperature -26°C~+65°C

•     Aluminium outer tube and stroke rod

•     Protection IP54 or IP65

•     12 or 24 or 36 or 48VDC

•     Preset limit switches

•     Powder metal gears

•     Aluminium alloy housing

•     Robust design

ZHEJIANG NAKIN INTELLIGENT TECHNOLOGY CO.,LTD started since 1988 , specializing in R&D, production of linear motion system. NAKIN has linear actuator, lifting column, height adjustable lifting desk frame and control box, which now have wide applications in fields like medical care (medical bed , dental chair , patient lift ), home care (massage sofa , reclining chair , window , door  ), intelligent industries (solar tracker , robot , snowplow , lift platform , lindustry machines ) , agricultural machinery and smart office (sit-stand office tables ). We have a strong R & D team and the most competitive manufacturing capacity, mechanical and electrical integration capacity and 30 years of export experience . we have complete production equipments including automatic cutter line, laser robots and spraying lines .

NAKIN has passed system certification of ISO9001 ,and our products has been approved by UL, CE . Our products are sold to North America , Europe, Australia, Southeast Asia, and many other countries in the world . NAKIN aims to provide high quality products and good service for customers .

Small orders send by FEDEX /UPS/TNT/DHL express , it takes about 7 days to arrive .

Big orders send by sea ,  it takes about 30 days to arrive .

Q: May I have a sample order before bulk one?
A: Of course, we suggest customers to buy samples to test first .

Q: How can I get the quotation?
A: You need to send up information, we will let our sales to contact you, and the details you should to give:  email address,
telephone number, input voltage , Load force , stroke length , retracted length , speed , your application and  quantity .

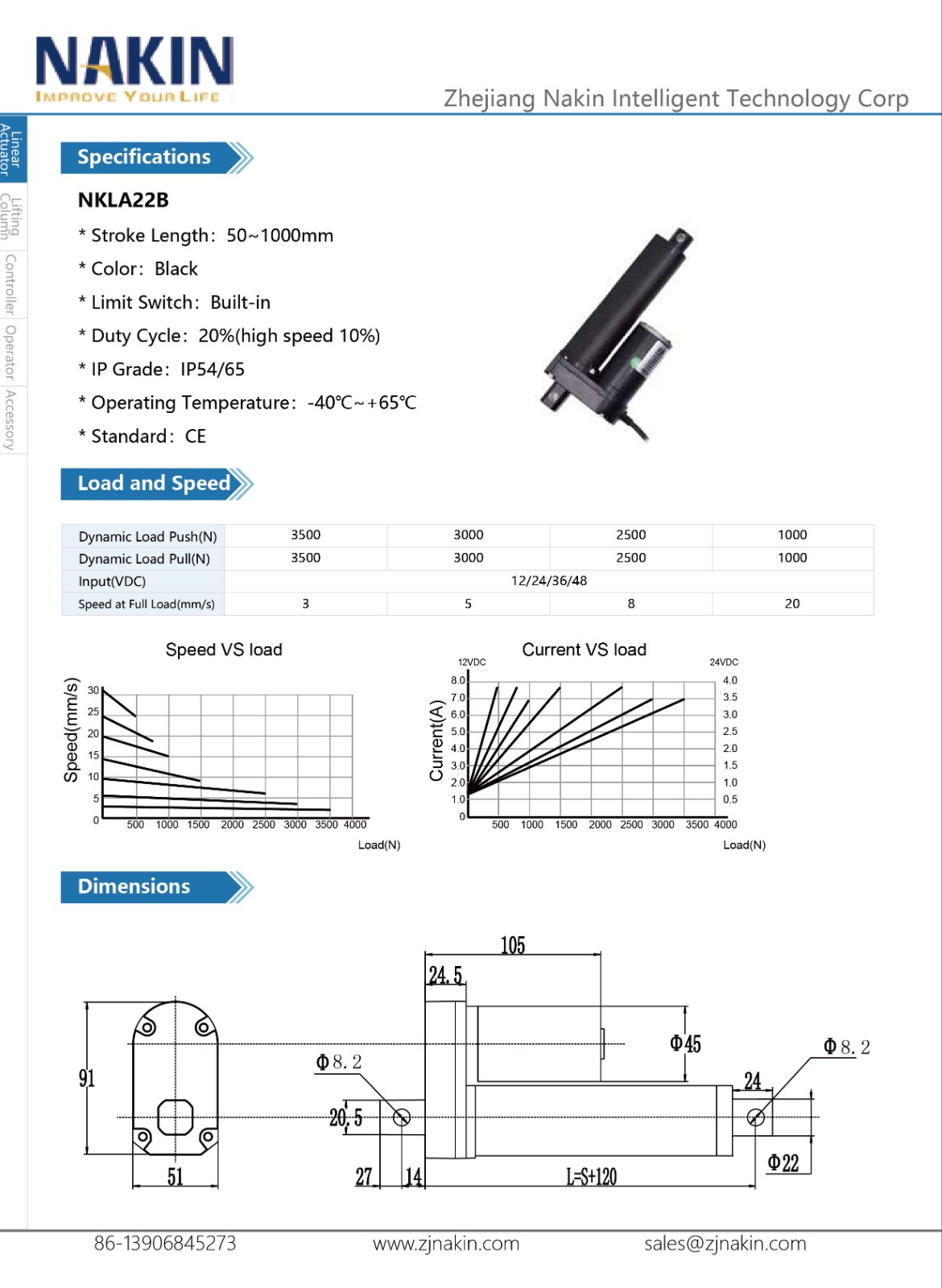

Download NKLA22B Datasheet
