2KN solar tracker inline linear actuator

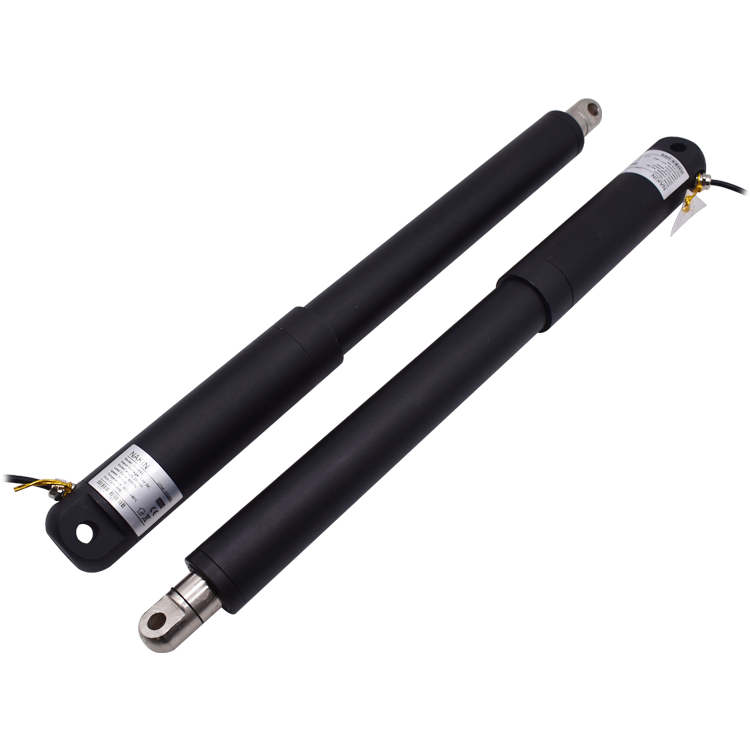

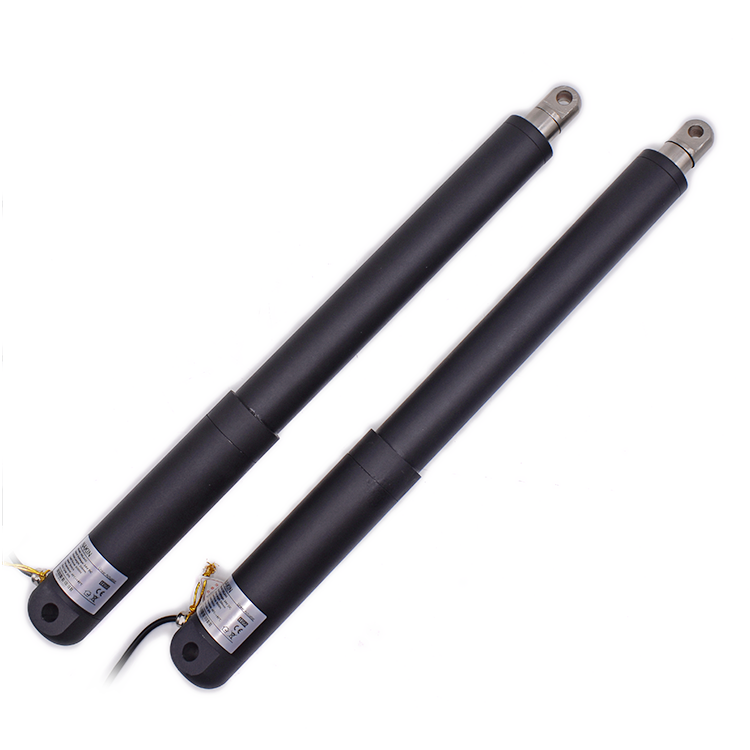

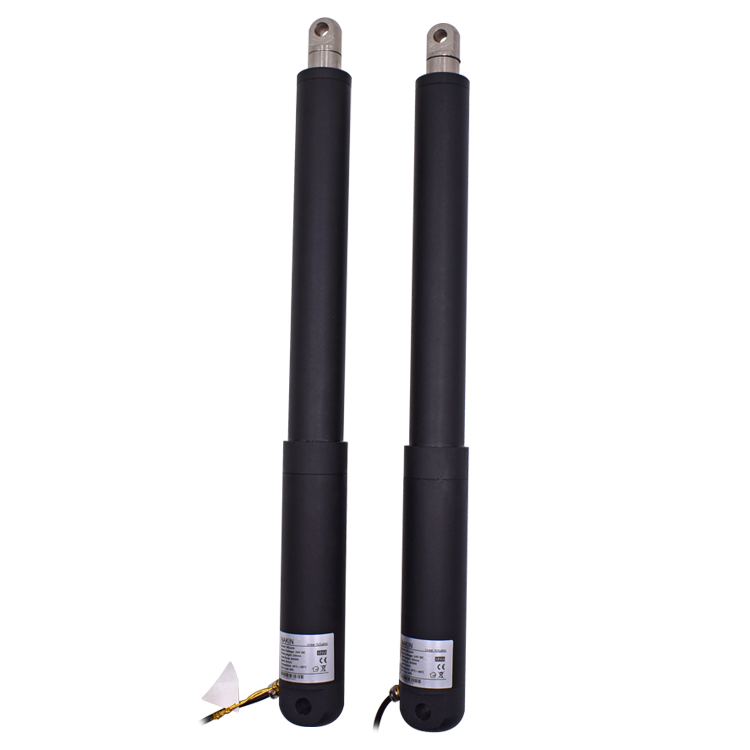

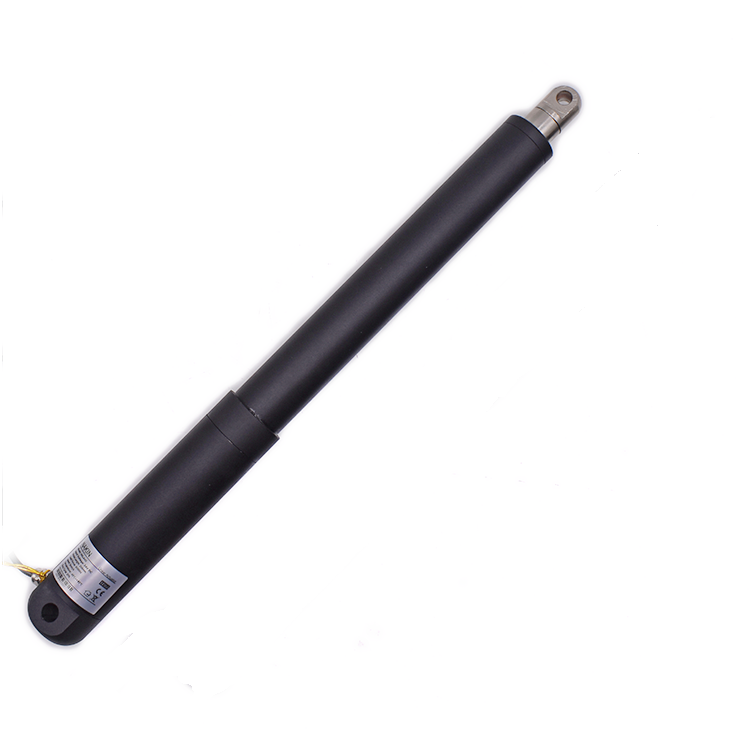

NKLA45 2KN solar tracker inline linear actuator

Introduction

NKLA45 heavy load inline linear actuator is widely used, such as the solar tracker system, hatch door and escalator of yacht, for the adjustment of solar panel' s angle, open of the hatch door, the up & down of escalator. Actuator make the yacht more intelligent as it is easy to install, convenient to use with its compact structure, attractive appearance, low energy, low noise, waterproof and dustproof.

Features

1. DC mini permanent magnet motor .

2. speed 2~12mm/s (optional)

3.maximum load 20000N.

4.Tempreture range : -45°C~+75°C

5. Duty cycle : 10% with full load .

6. build in limit switch .

7.IP grade: IP66

8. hall sensor for option

ZHEJIANG NAKIN INTELLIGENT TECHNOLOGY CO.,LTD started since 1988 , specializing in R&D, production of linear motion system. NAKIN has linear actuator, lifting column, height adjustable lifting desk frame and control box, which now have wide applications in fields like medical care (medical bed , dental chair , patient lift ), home care (massage sofa , reclining chair , window , door  ), intelligent industries (solar tracker , robot , snowplow , lift platform , lindustry machines ) , agricultural machinery and smart office (sit-stand office tables ). We have a strong R & D team and the most competitive manufacturing capacity, mechanical and electrical integration capacity and 30 years of export experience . we have complete production equipments including automatic cutter line, laser robots and spraying lines .

NAKIN has passed system certification of ISO9001 ,and our products has been approved by UL, CE . Our products are sold to North America , Europe, Australia, Southeast Asia, and many other countries in the world . NAKIN aims to provide high quality products and good service for customers .

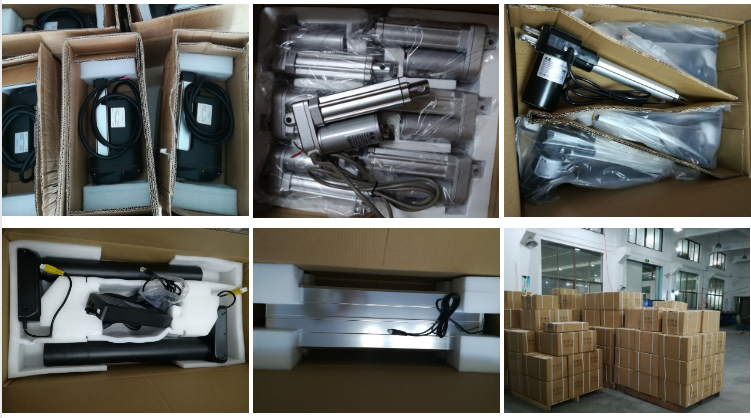

Small orders send by FEDEX /UPS/TNT/DHL express , it takes about 7 days to arrive .

Big orders send by sea ,  it takes about 30 days to arrive .

Q: May I have a sample order before bulk one?
A: Of course, we suggest customers to buy samples to test first .

Q: How can I get the quotation?
A: You need to send up information, we will let our sales to contact you, and the details you should to give:  email address,
telephone number, input voltage , Load force , stroke length , retracted length , speed , your application and  quantity .

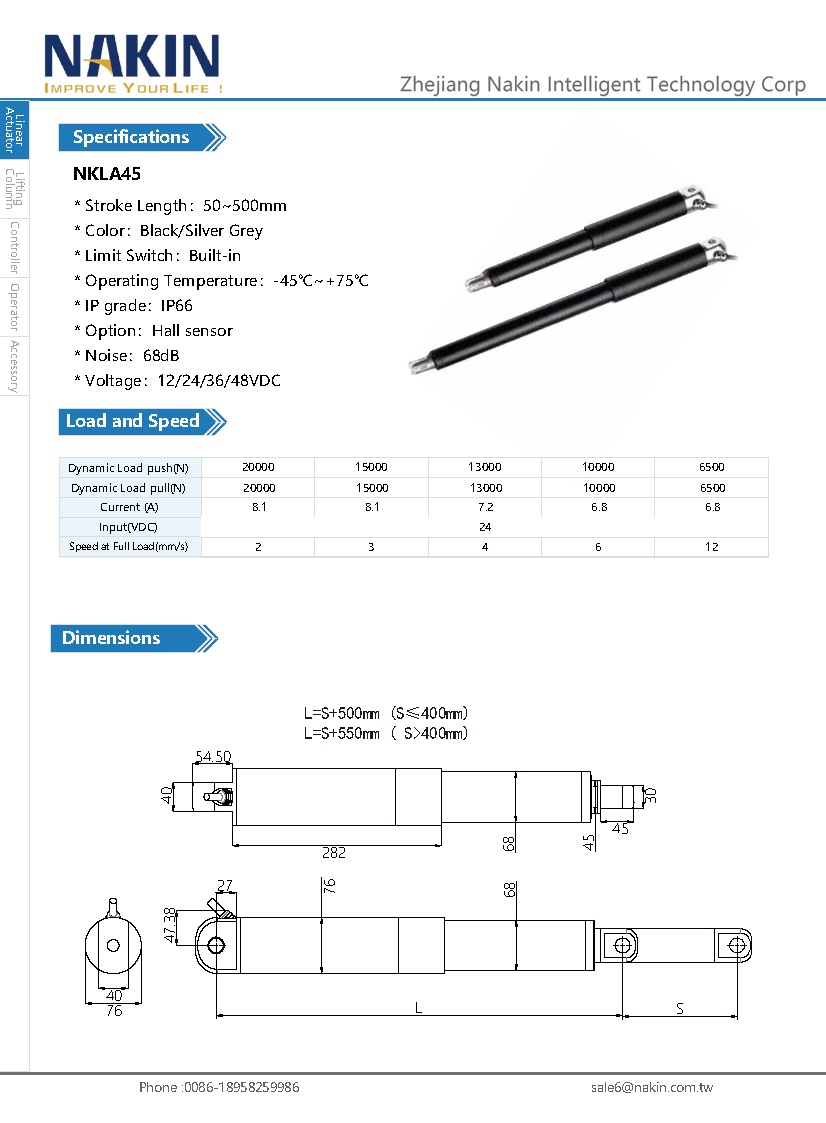

Download NKLA45 Datasheet
