36mm telescopic Linear Actuator

1.max stroke 600mm
2.Max Laod : 2000N
3.Noise : 56db
4.Outer tube diameter 36mm
5.Limit Switch:built-in
6.IP Grade:IP65
7.Optional:Hall sensor

NKLA69 In-line 36mm tubular 12VDC actuator is equipped with a brushed dc motor, unbeatable operational conditions (-25ºc to +65ºc) / (-13°f to 149), also low-noise (dB<56) which makes it more ideal. it suitable for window opener, Blinds, Car boot opener, Electric Bicycle, TV lift, Cabinet lift, Recliner sofa, Chair, Trunk, Hatch lift, Quiet version is availabel for Furniture, Laboratory equipment, etc.

EMAIL

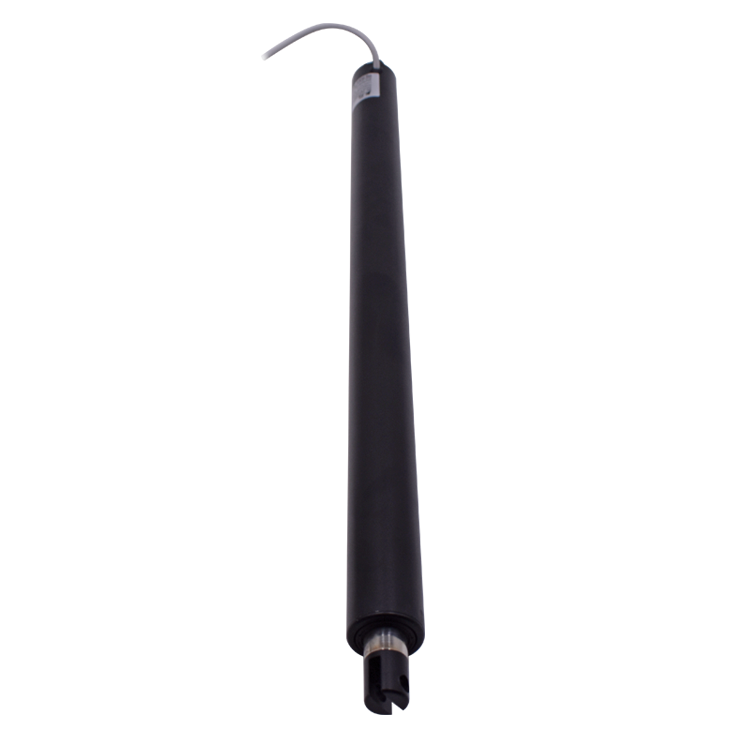

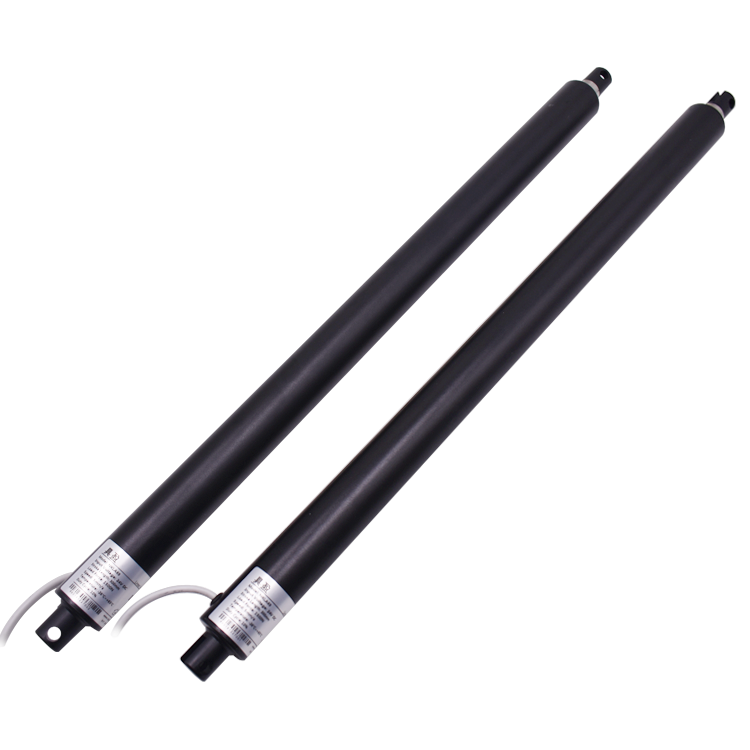

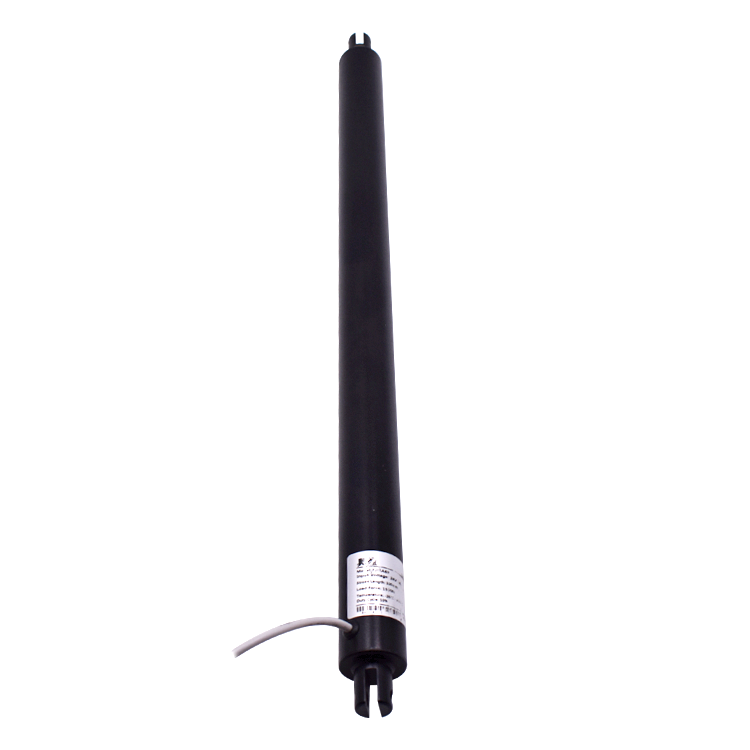

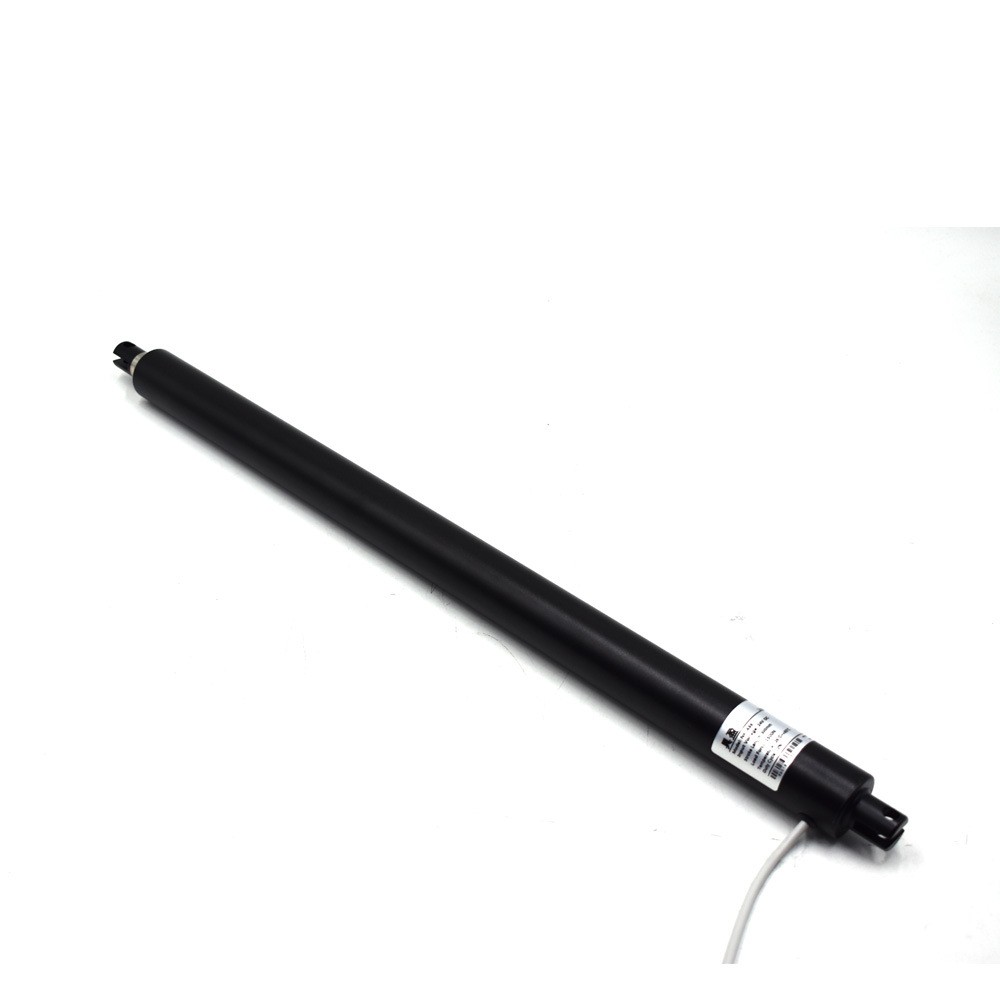

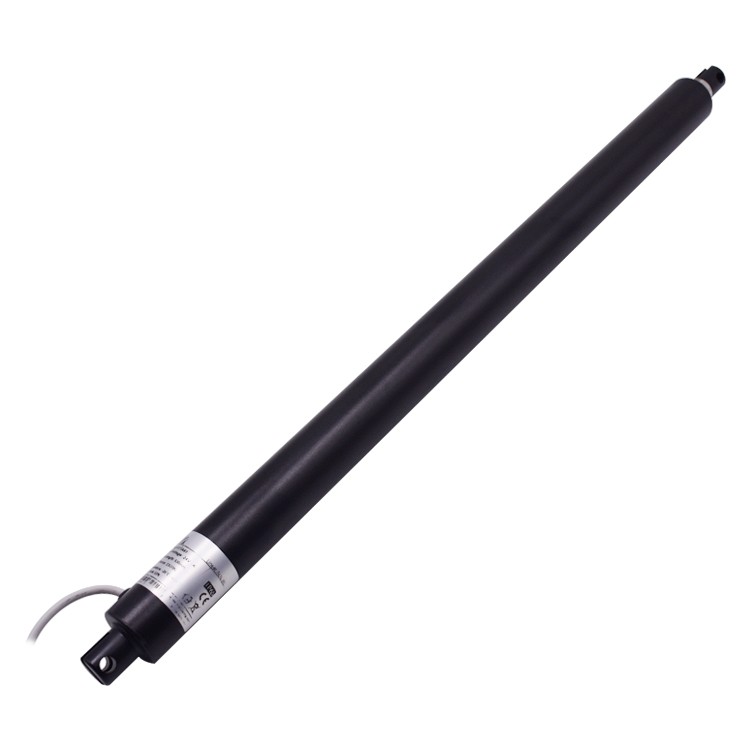

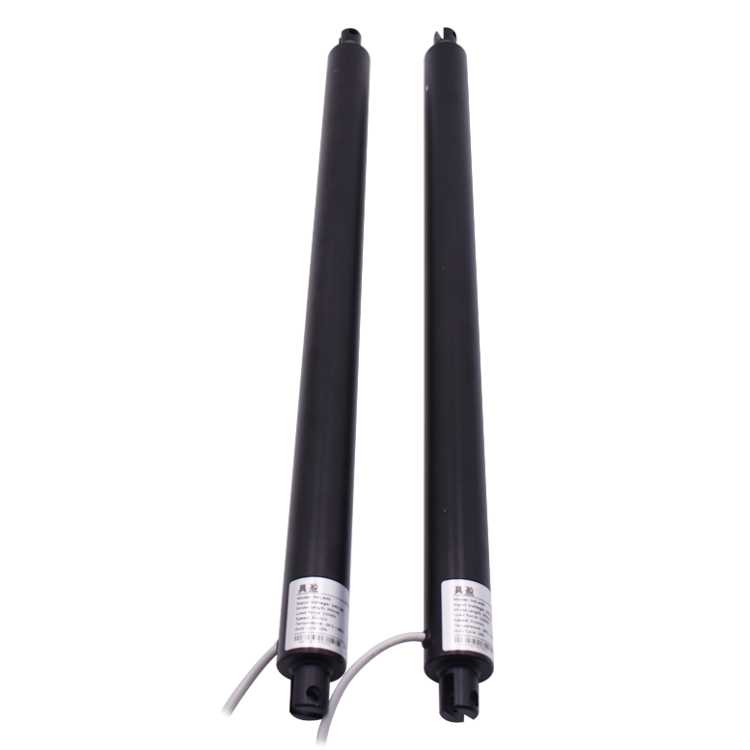

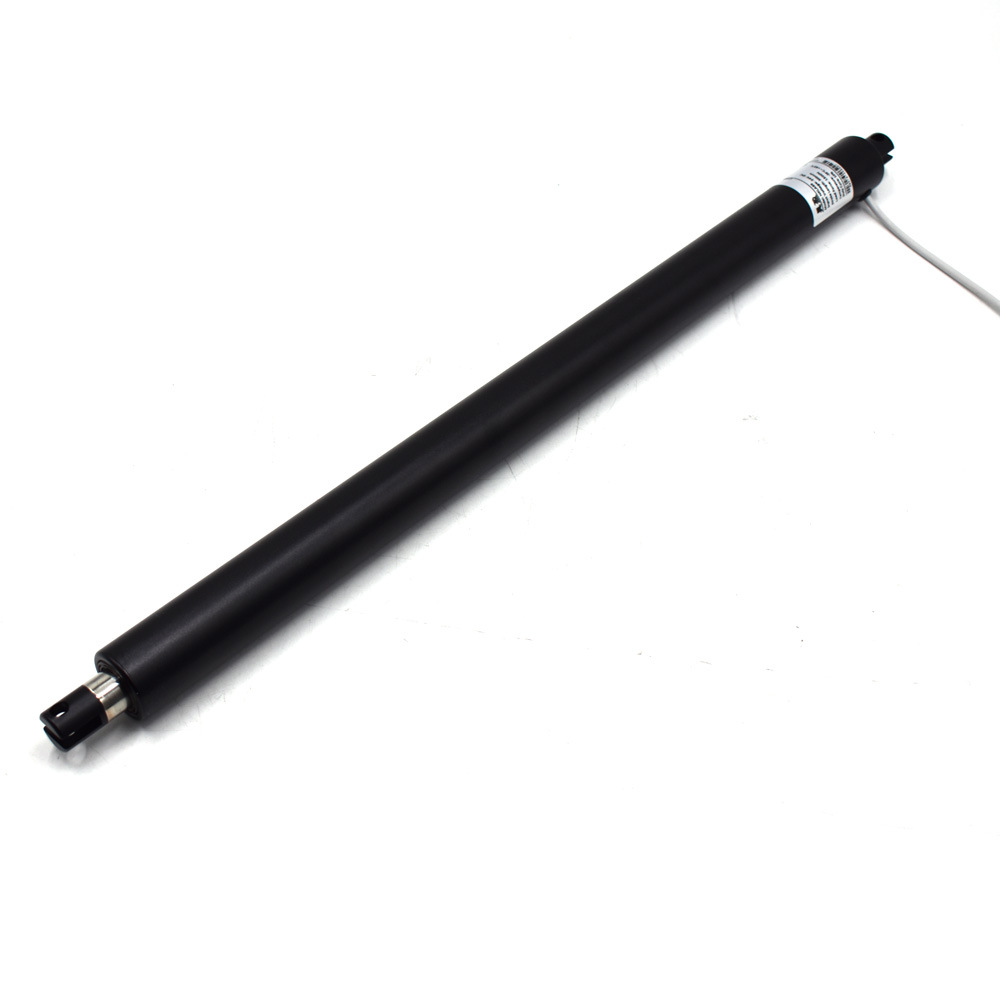

NKLA69 tube 36mm telescopic Linear Actuator

Introduction

NKLA69 In-line 36mm tubular 12VDC actuator is equipped with a brushed dc motor, unbeatable operational conditions (-25ºc to +65ºc) / (-13°f to 149), also low-noise (dB<56) which makes it more ideal. it suitable for window opener, Blinds, Car boot opener, Electric Bicycle, TV lift, Cabinet lift, Recliner sofa, Chair, Trunk, Hatch lift, Quiet version is availabel for Furniture, Laboratory equipment, etc.

Features

1.max stroke 600mm

2.Max Laod : 2000N

3.Noise : 56db

4.Outer tube diameter 36mm

5.Limit Switch:built-in

6.IP Grade:IP65

7.Optional:Hall sensor





ZHEJIANG NAKIN INTELLIGENT TECHNOLOGY CO.,LTD started since 1988 , specializing in R&D, production of linear motion system. NAKIN has linear actuator, lifting column, height adjustable lifting desk frame and control box, which now have wide applications in fields like medical care (medical bed , dental chair , patient lift ), home care (massage sofa , reclining chair , window , door  ), intelligent industries (solar tracker , robot , snowplow , lift platform , lindustry machines ) , agricultural machinery and smart office (sit-stand office tables ). We have a strong R & D team and the most competitive manufacturing capacity, mechanical and electrical integration capacity and 30 years of export experience . we have complete production equipments including automatic cutter line, laser robots and spraying lines .

NAKIN has passed system certification of ISO9001 ,and our products has been approved by UL, CE . Our products are sold to North America , Europe, Australia, Southeast Asia, and many other countries in the world . NAKIN aims to provide high quality products and good service for customers .



production line .png




Small orders send by FEDEX /UPS/TNT/DHL express , it takes about 7 days to arrive .

Big orders send by sea ,  it takes about 30 days to arrive .

linear actuator packages.png


Q: May I have a sample order before bulk one?
A: Of course, we suggest customers to buy samples to test first .

Q: How can I get the quotation?
A: You need to send up information, we will let our sales to contact you, and the details you should to give:  email address,
telephone number, input voltage , Load force , stroke length , retracted length , speed , your application and  quantity .

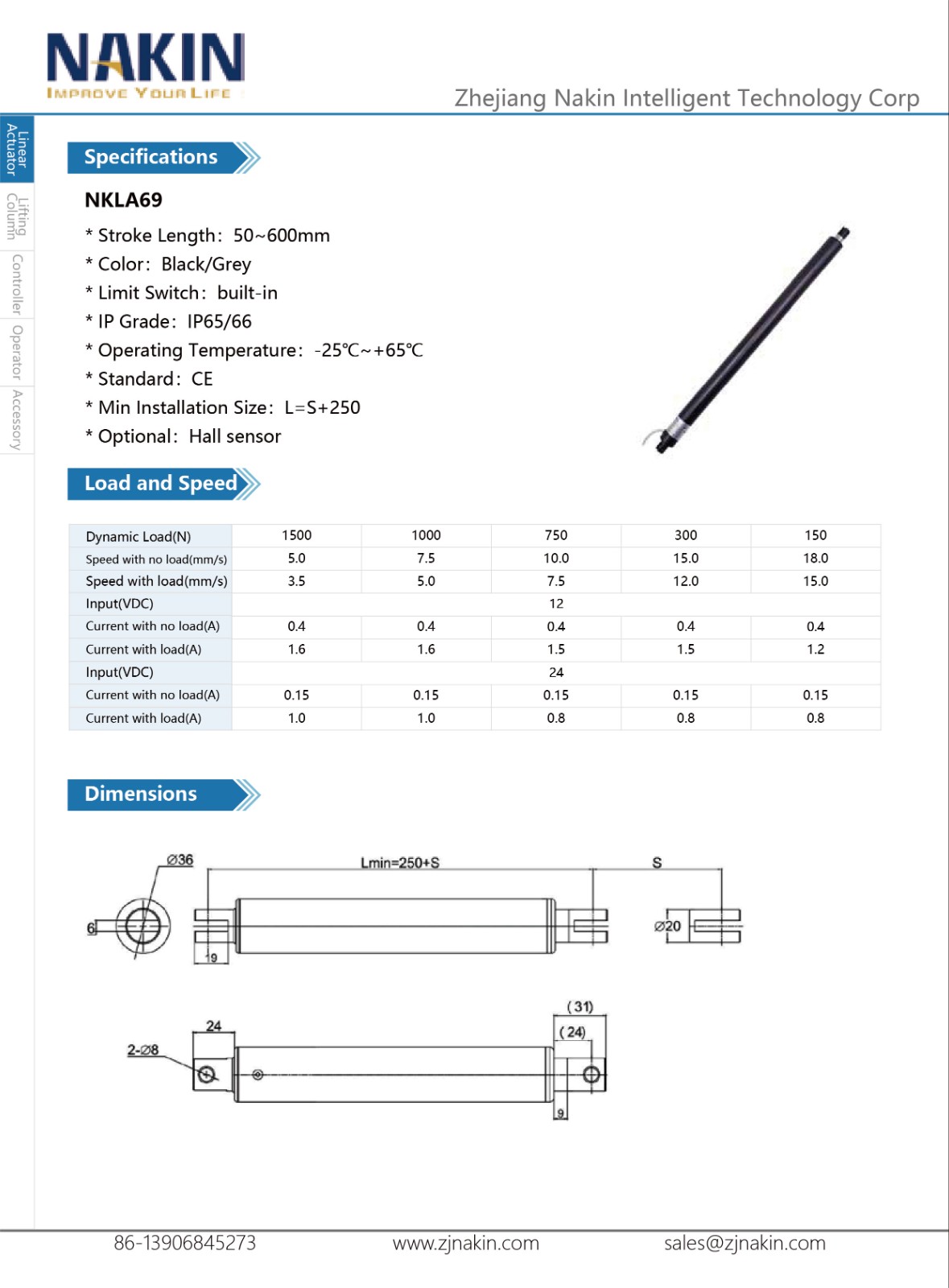

Download NKLA69 Datasheet
