15000N heavy load linear actuator for solar tracker system

NKLA50 15000N heavy load linear actuator for solar tracker system

Introduction

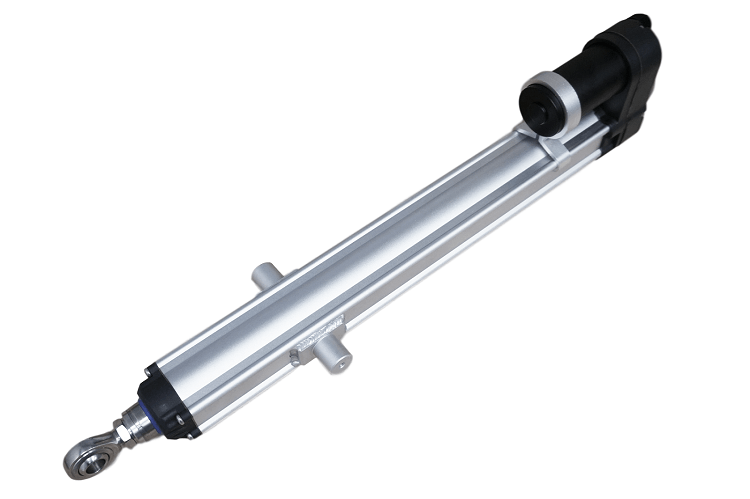

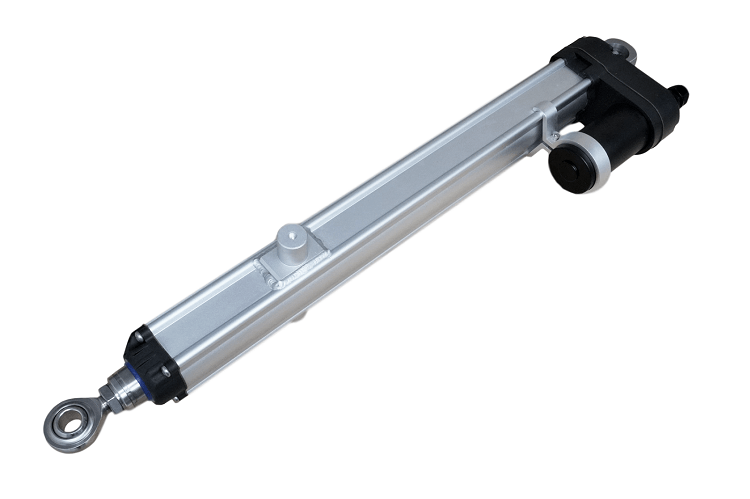

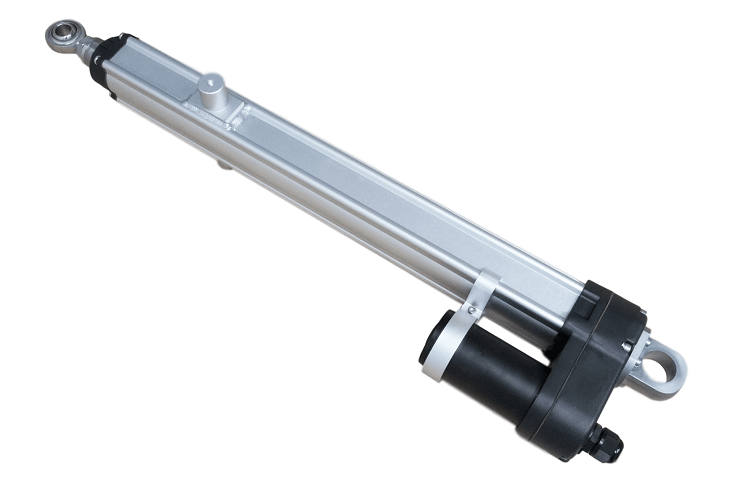

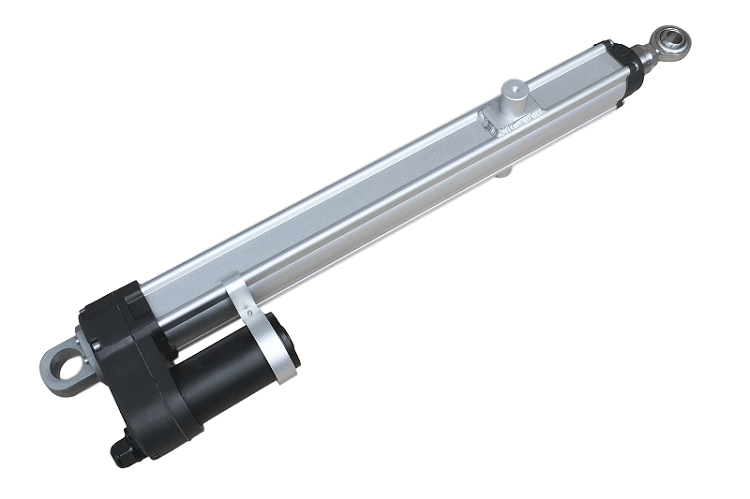

NKLA50 Solar Actuator is designed specifically for solar applications. It can produce up to 15000N of force, so it is able to handle the high force requirements needed for large solar machinery. It also features welded shaft mounts to make installation onto solar trackers simple. The high environmental protection rating produces a durable unit able to withstand potentially harsh outdoor environments where most solar applications are found.

This linear actuator can be found primarily in the solar power industry.

Features

• 24 V DC permanent magnetic motor

• Static holding force up to 45 kN* in push and pull

• Dynamic wind stress forces 15 kN push/pull 80.000 times

• Max.stroke length 1200 mm

• Heavy-duty aluminum housing for harsh conditions

• Highly efficient acme thread spindle

• Protection class: IP66 for outdoor use (dynamic)

• Integrated brake, high self-locking ability

• Noise level: 56 dB

• Design for 25 years service life

Options:

• Built-in end stop switches

• Hall effect sensor

ZHEJIANG NAKIN INTELLIGENT TECHNOLOGY CO.,LTD started since 1988 , specializing in R&D, production of linear motion system. NAKIN has linear actuator, lifting column, height adjustable lifting desk frame and control box, which now have wide applications in fields like medical care (medical bed , dental chair , patient lift ), home care (massage sofa , reclining chair , window , door  ), intelligent industries (solar tracker , robot , snowplow , lift platform , lindustry machines ) , agricultural machinery and smart office (sit-stand office tables ). We have a strong R & D team and the most competitive manufacturing capacity, mechanical and electrical integration capacity and 30 years of export experience . we have complete production equipments including automatic cutter line, laser robots and spraying lines .

NAKIN has passed system certification of ISO9001 ,and our products has been approved by UL, CE . Our products are sold to North America , Europe, Australia, Southeast Asia, and many other countries in the world . NAKIN aims to provide high quality products and good service for customers .

Small orders send by FEDEX /UPS/TNT/DHL express , it takes about 7 days to arrive .

Big orders send by sea ,  it takes about 30 days to arrive .

Q: May I have a sample order before bulk one?
A: Of course, we suggest customers to buy samples to test first .

Q: How can I get the quotation?
A: You need to send up information, we will let our sales to contact you, and the details you should to give:  email address,
telephone number, input voltage , Load force , stroke length , retracted length , speed , your application and  quantity .

Download NKLA50 Datasheet
