low noise 8000N linear actuator for patient lift

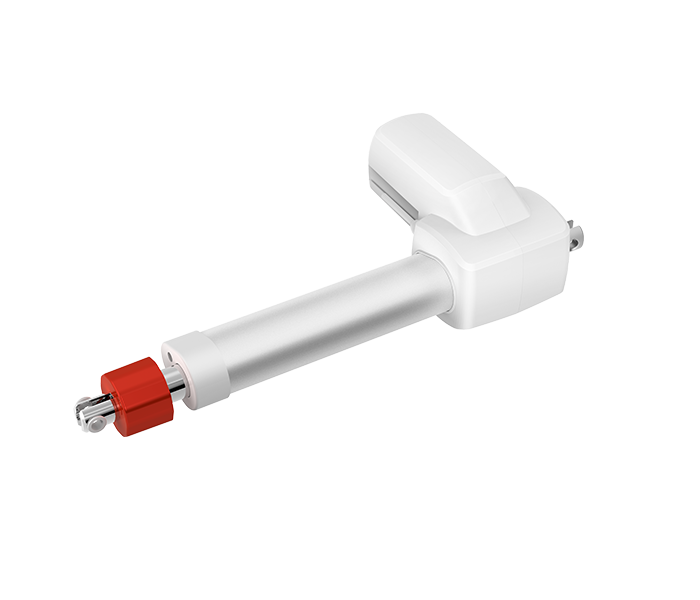

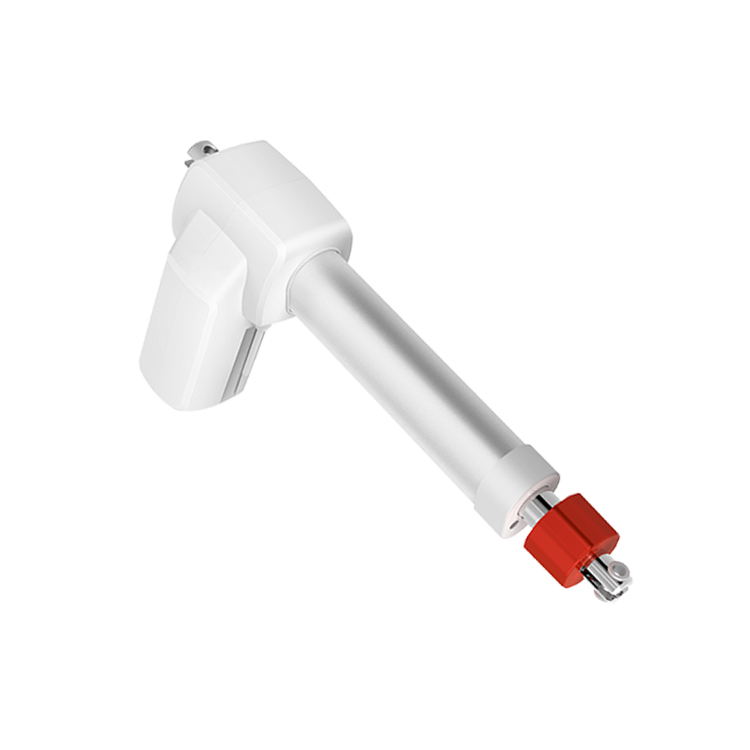

NKLA109 low noise 8000N linear actuator for patient lift

Introduction

NKLA109 (with manual lowering) is a strong and fast motion actuator. Functions of manual lowering and anti-pinch are available. Large thrust and small installing dimensions make it has wide applications. These features make NKLA109 a good choice to be applied in patient lifters and other medical furniture.

Features

1.Thrust up to 8000N

2.Stroke length：0-400mm(±2mm)

3.Manual lowering: red

4.IP Grade：IP66

5.Noise level≤50dB (ambient noise≤40dB)

6.Safety nut: necessary

7.Built-in electrical limit switches

8.Mechanical limits: upper and down

9.Wire length optional

ZHEJIANG NAKIN INTELLIGENT TECHNOLOGY CO.,LTD started since 1988 , specializing in R&D, production of linear motion system. NAKIN has linear actuator, lifting column, height adjustable lifting desk frame and control box, which now have wide applications in fields like medical care (medical bed , dental chair , patient lift ), home care (massage sofa , reclining chair , window , door  ), intelligent industries (solar tracker , robot , snowplow , lift platform , lindustry machines ) , agricultural machinery and smart office (sit-stand office tables ). We have a strong R & D team and the most competitive manufacturing capacity, mechanical and electrical integration capacity and 30 years of export experience . we have complete production equipments including automatic cutter line, laser robots and spraying lines .

NAKIN has passed system certification of ISO9001 ,and our products has been approved by UL, CE . Our products are sold to North America , Europe, Australia, Southeast Asia, and many other countries in the world . NAKIN aims to provide high quality products and good service for customers .

Small orders send by FEDEX /UPS/TNT/DHL express , it takes about 7 days to arrive .

Big orders send by sea ,  it takes about 30 days to arrive .

Q: May I have a sample order before bulk one?
A: Of course, we suggest customers to buy samples to test first .

Q: How can I get the quotation?
A: You need to send up information, we will let our sales to contact you, and the details you should to give:  email address,
telephone number, input voltage , Load force , stroke length , retracted length , speed , your application and  quantity .

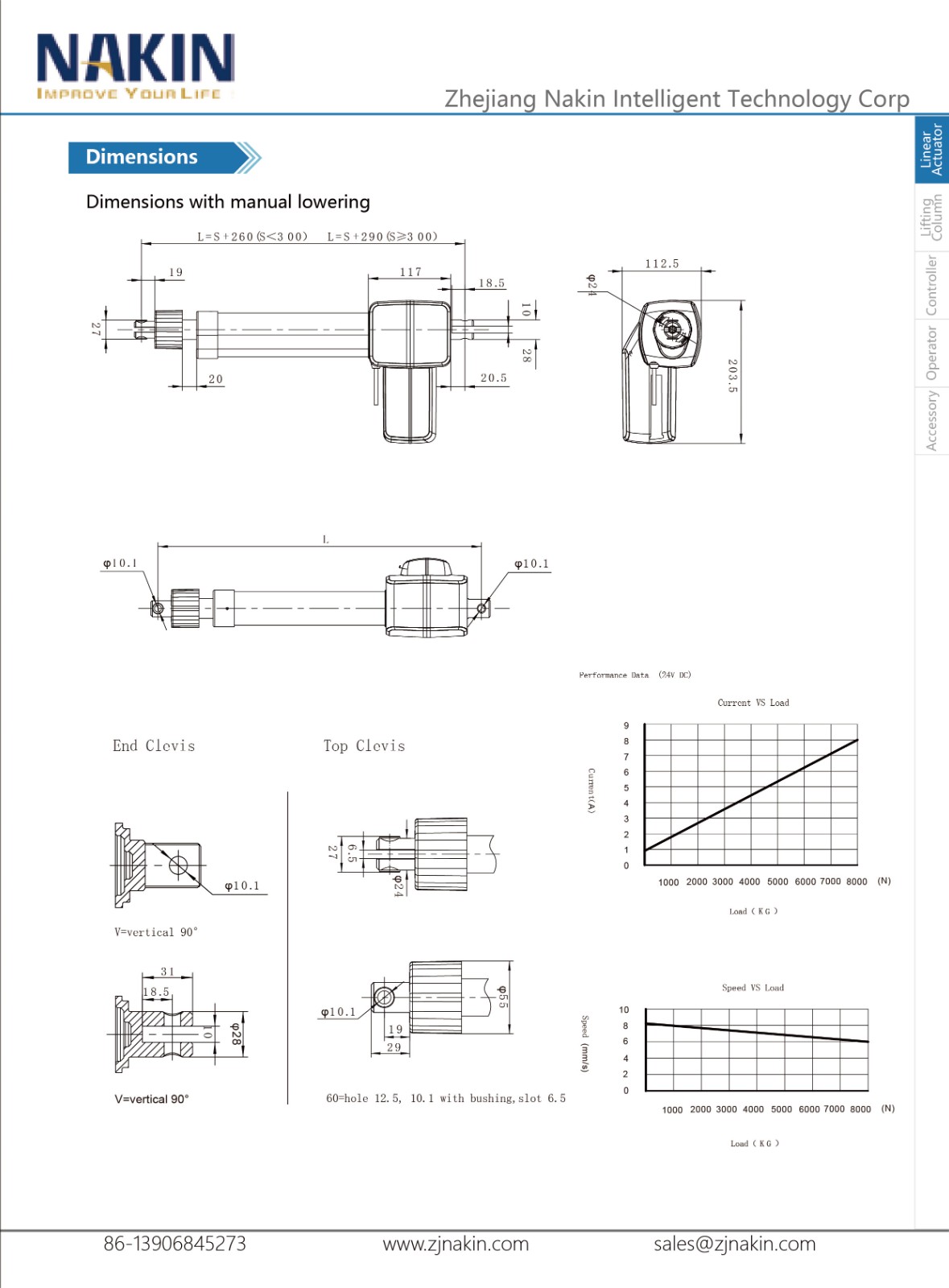

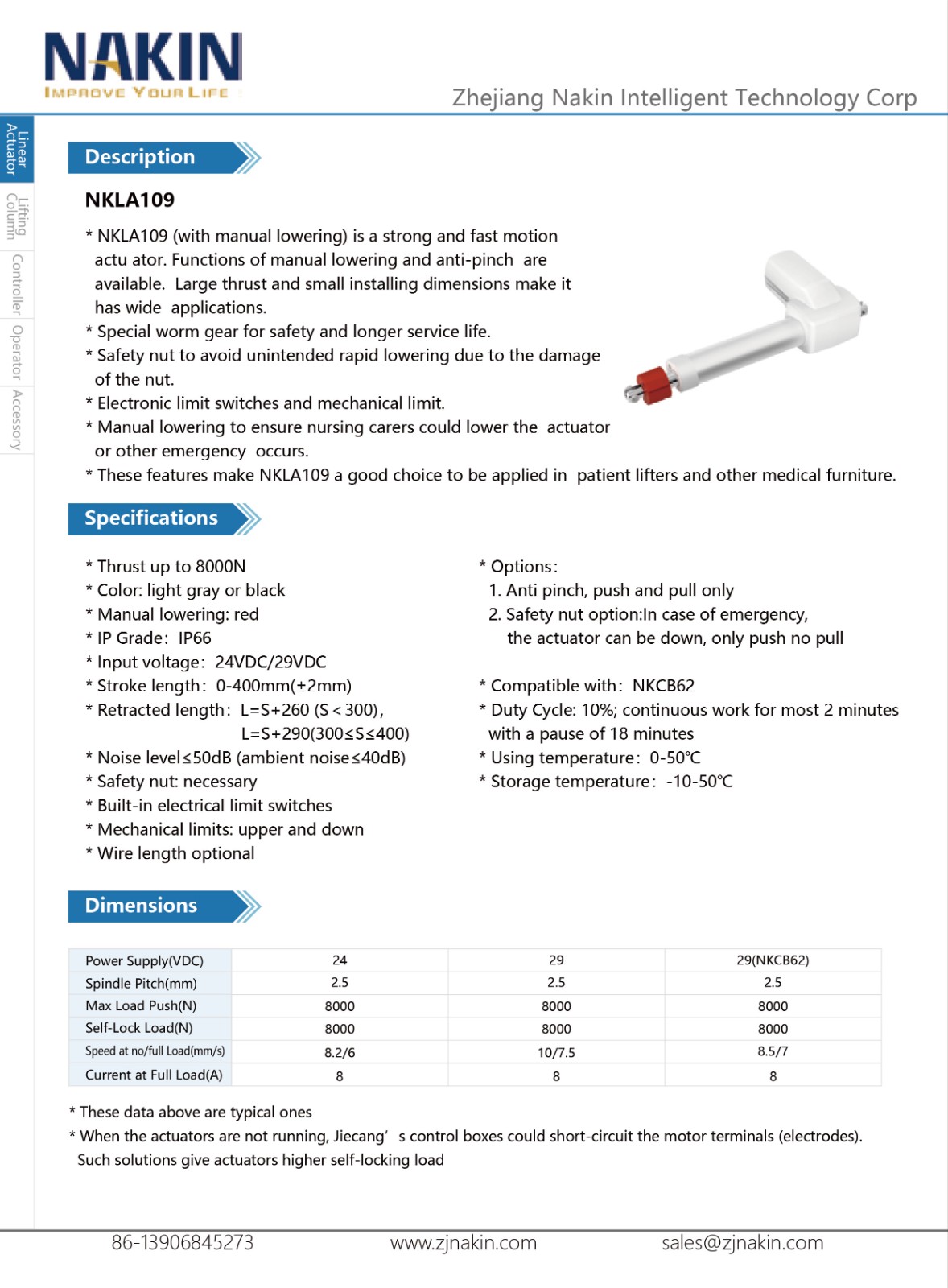

Download NKLA109 Datasheet
