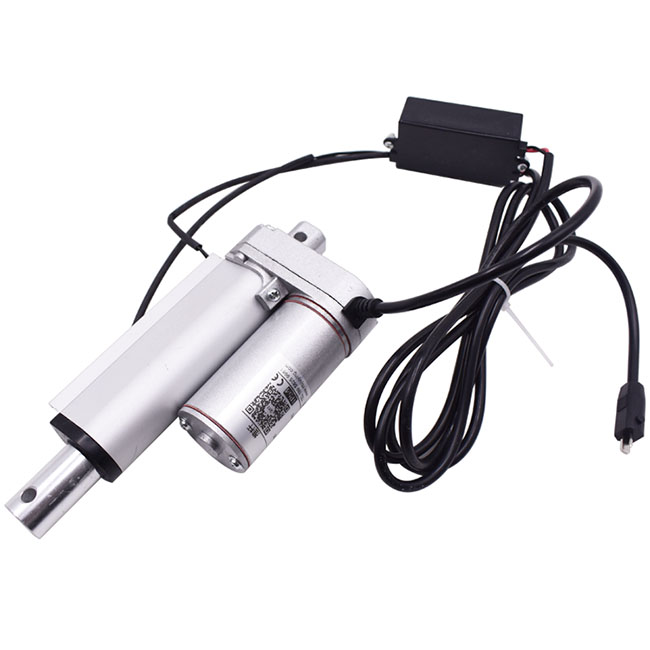

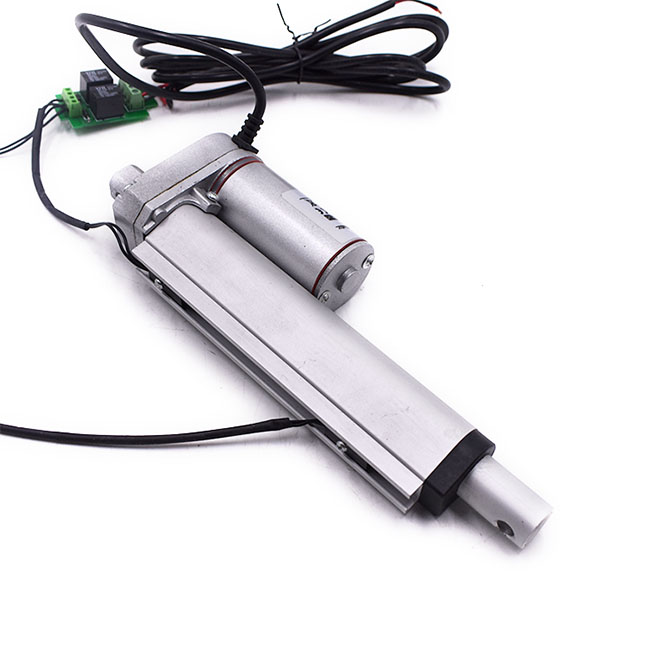

NKLA36 stroke adjustable linear actuator

NKLA36 stroke adjustable linear actuator

Introduction

NKLA36 is compact and lightweight electric linear actuator, made of aluminium, could stop itselfly by taking dc motor reduction gear ratio. Its adjustable stroke makes it easy to install and operate. This type of electric linear actator has external magnetic switch that only feedbacks signals, if wanting to chang it into electric sigals to stop electric linear actuator, you should connect it to PCB. PCB is optional accessory.

Features

•Ambient temperature: -20°C~+65°C

•Material: Aluminium alloy outer tube and pushrod

•IP Grade: IP54 or IP65

•Input voltage:12,24,36,48VDC

•external magnet switch,adjusted stroke

•Powder matallurgy gear

ZHEJIANG NAKIN INTELLIGENT TECHNOLOGY CO.,LTD started since 1988 , specializing in R&D, production of linear motion system. NAKIN has linear actuator, lifting column, height adjustable lifting desk frame and control box, which now have wide applications in fields like medical care (medical bed , dental chair , patient lift ), home care (massage sofa , reclining chair , window , door  ), intelligent industries (solar tracker , robot , snowplow , lift platform , lindustry machines ) , agricultural machinery and smart office (sit-stand office tables ). We have a strong R & D team and the most competitive manufacturing capacity, mechanical and electrical integration capacity and 30 years of export experience . we have complete production equipments including automatic cutter line, laser robots and spraying lines .

NAKIN has passed system certification of ISO9001 ,and our products has been approved by UL, CE . Our products are sold to North America , Europe, Australia, Southeast Asia, and many other countries in the world . NAKIN aims to provide high quality products and good service for customers .

Small orders send by FEDEX /UPS/TNT/DHL express , it takes about 7 days to arrive .

Big orders send by sea ,  it takes about 30 days to arrive .

Q: May I have a sample order before bulk one?
A: Of course, we suggest customers to buy samples to test first .

Q: How can I get the quotation?
A: You need to send up information, we will let our sales to contact you, and the details you should to give:  email address,
telephone number, input voltage , Load force , stroke length , retracted length , speed , your application and  quantity .

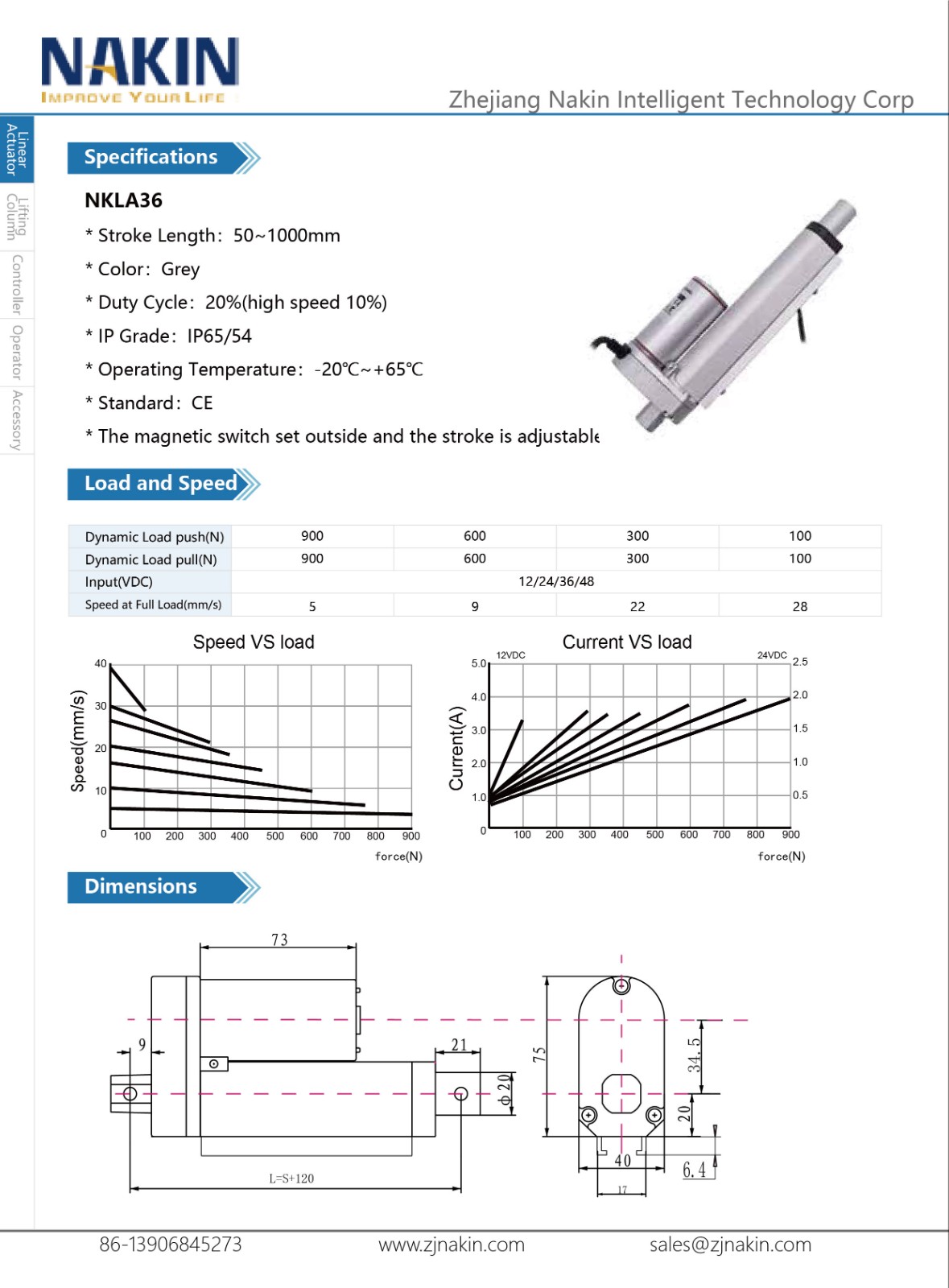

Download NKLA36 Datasheet
